Made in Germany
10 years garanty

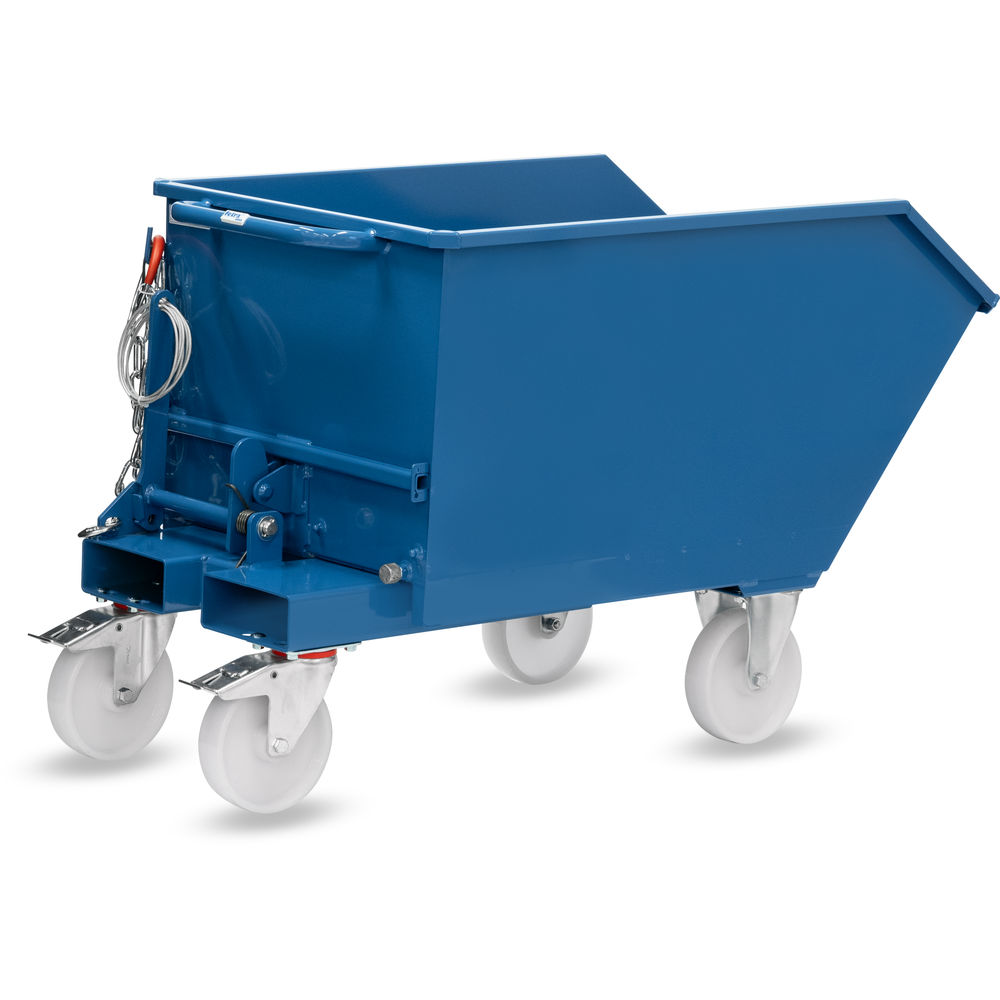

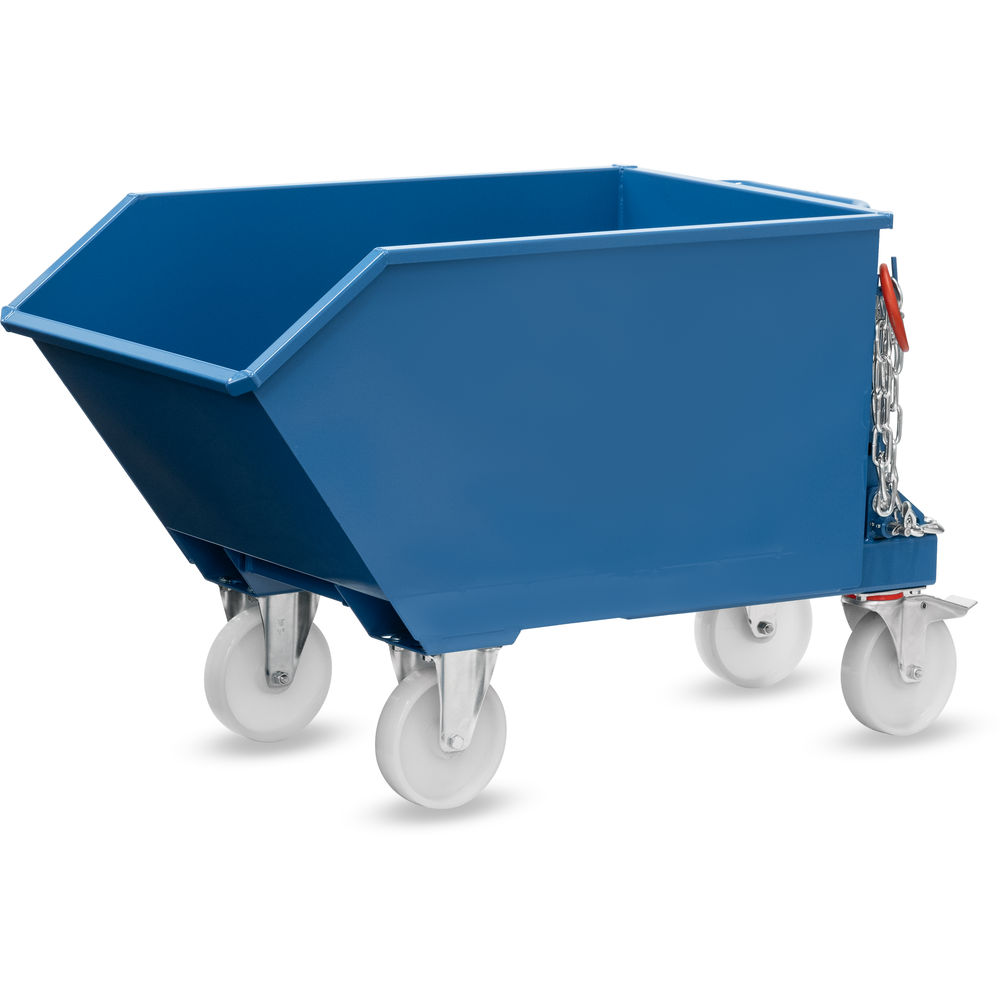

Tipping container 300 litres with set of wheels
for automatic tipping even of extremely light bulk goods
item number 6230R
Product information
Particularly low construction. Tipping containers must be lifted with a fork lift for emptying. Sturdy welded 2 mm sheet steel design, powder coated in RAL 5007 blue. Standard-fitted fork-lift sleeves, anti-roll safety device and tilt lock. Safety chain as anti-skidding and safety device. Traction cable to activate tilting mechanism, operated from fork-lift truck driver's seat. 2 swivel and 2 fixed-wheel castors made of polyamide,size 200 x 50 mm, fitted underneath the fork-lift sleeves. Swivel castors with wheel locks.
Technical Data
| Total Load Capacity (kg) | 750 |
| Wheel Size (mm) | 200 |
| Tyres | Polyamide |
| Total Length (mm) | 1433 |
| Total Width (mm) | 690 |
| Total Height (mm) | 823 |
| Box Dimensions (mm) | 1095 |
| Pouring Edge Height With Wheels (mm) | 655 |
| Content (Liters) | 300 |
| Version | without drainage tap |
Place of use
- Industry
- Machining operation
Purpose of use
- Disposal of bulk materials
- Disposal of industrial waste
