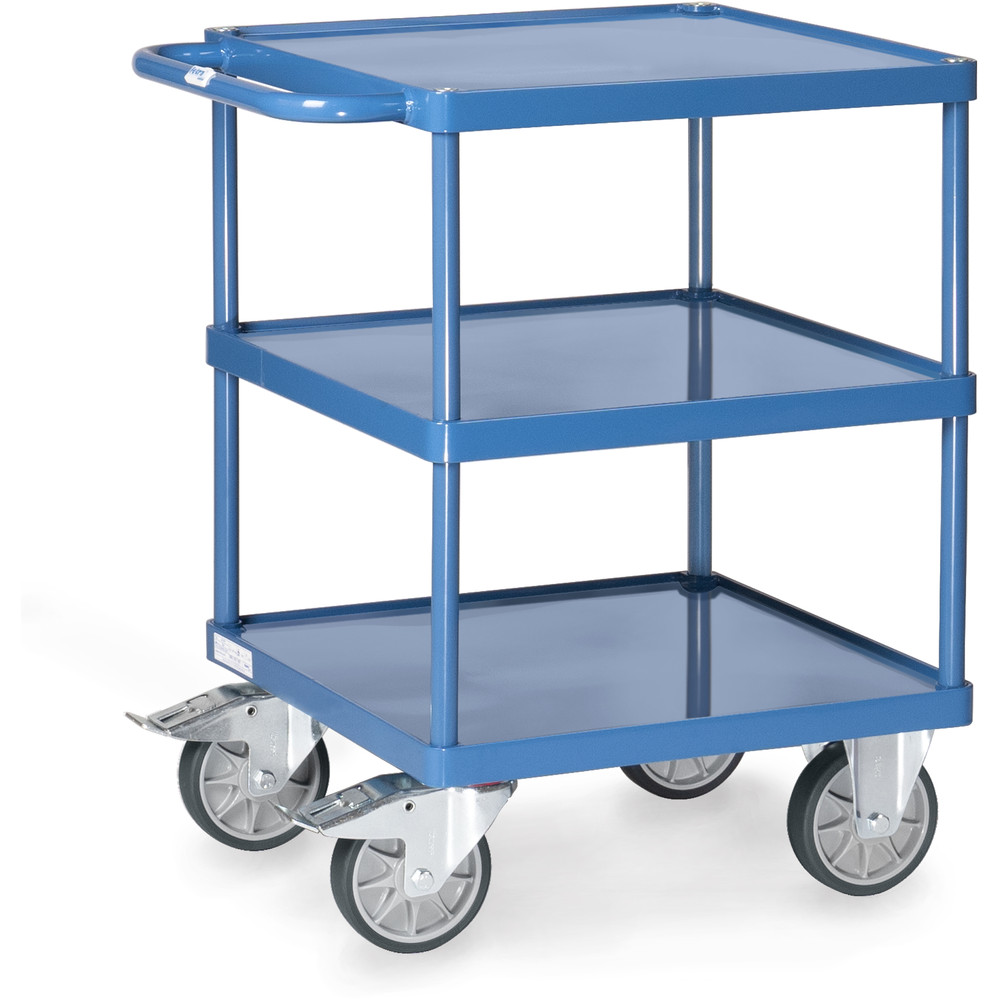

Table top cart with steel plate trays
with 3 square platforms, steel sheet trays, rim 10 mm high
item number 2416W
Variants
Usable Surface Length (mm) x Usable Surface Width (mm)
Additional options
Would you like to adapt the article to your needs? Take a look at the additional options:
Tyres
More Options
Product information
Modular system: Tubular steel and sectional steel, welded and powder coated, surface durably protected, resistant to impact and scratches. 3 square platforms, trays made of steel sheet, with rim 10 mm high, welded oil-tight, powder coated. 2 swivel and 2 fixed-wheel castors, TPE tyres, hubs with groove ball bearing. Swivel castors with wheel locks. Capacity upper shelf 200 kg.
Technical Data
| Total Load Capacity (kg) | 500 |
| Load capacity per shelf (kg) | 200 |
| Wheel Size (mm) | 160 |
| Tyres | TPE |
| Usable Surface Length (mm) | 600 |
| Usable Surface Width (mm) | 600 |
| Shelf Heights (mm) | 228, 544, 860 |
| Total Length (mm) | 737 |
| Total Width (mm) | 609 |
| Total Height (mm) | 860 |
Place of use
- Industry
- Stock
- Workshop
Purpose of use
- General transport
- Transport of goods and materials
- Use as an assembly table
