Made in Germany
10 years garanty

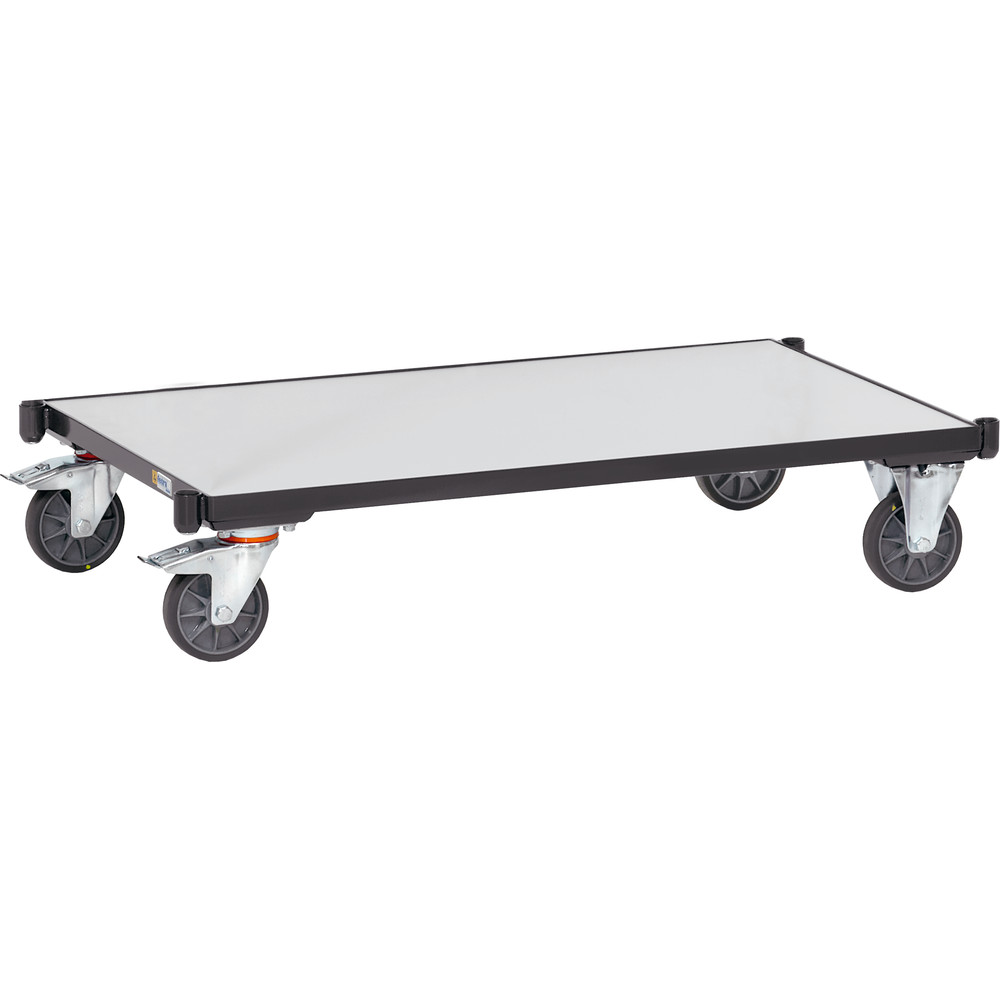

ESD-Driving frame
for light ESD table top carts
item number E1840FR
Variants
Usable Surface Length (mm) x Usable Surface Width (mm)
Additional options
Would you like to adapt the article to your needs? Take a look at the additional options:
More Options
Product information
Electrostatic discharge construction (ESD = Electrostatic Discharge). Basic platform from the modular system, conductive powder coating, slate grey RAL 7015. Surface durably protected, resistant to impact and scratches. Electrically conductive wooden shelf according to DIN 68765, light grey. The system parts are simply screwed tight.
Technical Data
| Total Load Capacity (kg) | 300 |
| Wheel Size (mm) | 125 |
| Tyres | TPE-ESD |
| Loading Surface Height (mm) | 206 |
| Usable Surface Length (mm) | 850 |
| Usable Surface Width (mm) | 500 |
| Total Length (mm) | 908 |
| Total Width (mm) | 511 |
| Total Height (mm) | 211 |
| Note | for light ESD table top carts |
