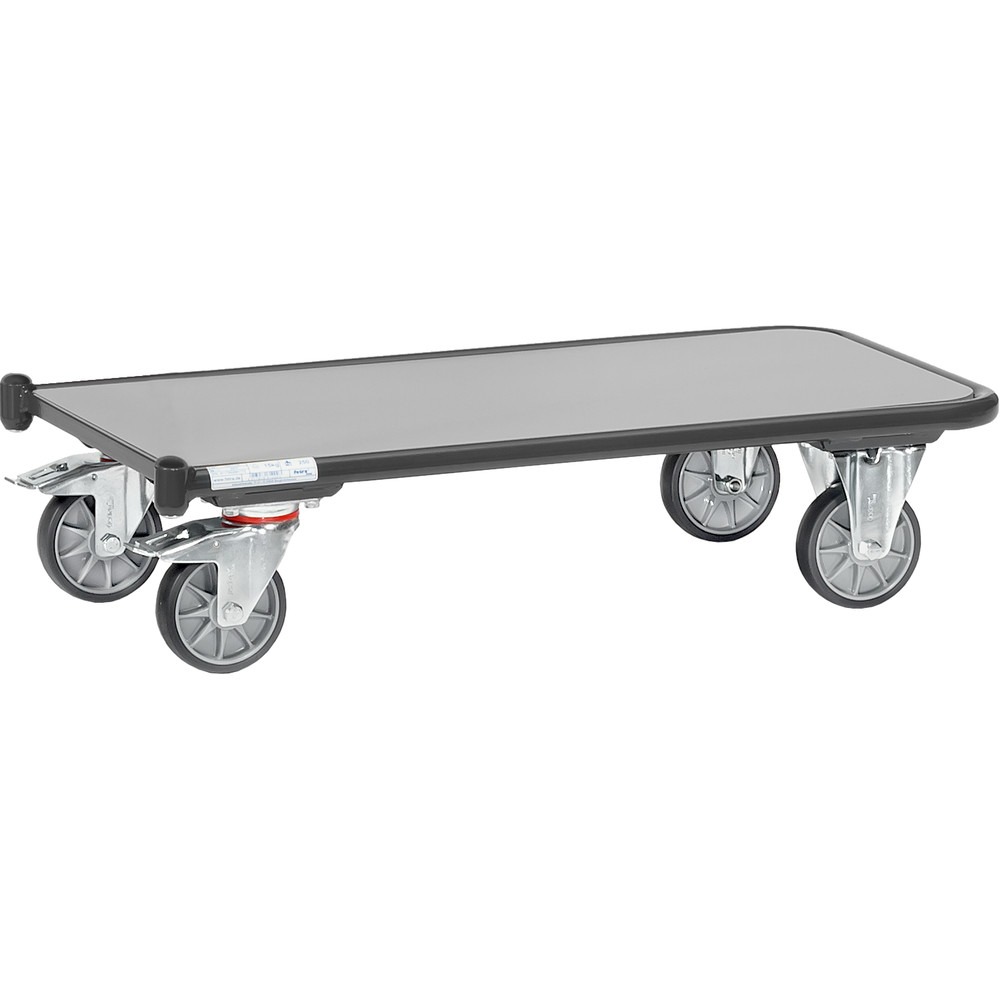

Driving frame GREY-EDITION
for storeroom trolleys
item number E1202FR-7016
Usable Surface Length (mm) x Usable Surface Width (mm)
![TOTALSTOP-central brake system]( "TOTALSTOP-central brake system")
![FIXSTOP - central directional locking]( "FIXSTOP - central directional locking")
![2 swivel castors with directional locking device]( "2 swivel castors with directional locking device")
Would you like to adapt the article to your needs? Take a look at the additional options:
Tyres
![Wheels with pneumatic tyres (max. 400 kg capacity)]( "Wheels with pneumatic tyres (max. 400 kg capacity)")
![Wheels with blue-grey elastic tyres]( "Wheels with blue-grey elastic tyres")
![Changing into 4 swivel castors]( "Changing into 4 swivel castors")
![Wheels with polyamide]( "Wheels with polyamide")
![Wheels with polyurethane tyres]( "Wheels with polyurethane tyres")
![Wheels with electrically conductive TPE-ESD-tyres]( "Wheels with electrically conductive TPE-ESD-tyres")
Wheels with pneumatic tyres (max. 400 kg capacity) +€239.00
item number: 1098
Wheels with blue-grey elastic tyres +€109.00
item number: 12855
Changing into 4 swivel castors +€18.00
item number: 1288
Wheels with polyamide +€29.00
item number: 1295
Wheels with polyurethane tyres +€168.00
item number: 2179
Wheels with electrically conductive TPE-ESD-tyres +€84.00
item number: 2182
TOTALSTOP-central brake system +€55.00
item number: 2210
FIXSTOP - central directional locking +€141.00
item number: 2220
2 swivel castors with directional locking device +€99.00
item number: 23989
€166.30
Content:
1 Stück
Delivery time: 1 - 2 Weeks
item number
E1202FR-7016
Share this article:
Product information
Basic platform, powder coated anthracite grey RAL 7016. Surface durably protected, resistant to impact and scratches. Shelf made of derived timber material boards, surface medium grey. The system parts are simply plugged in and screwed tight.
Technical Data
| Total Load Capacity (kg) | 300 |
| Wheel Size (mm) | 125 |
| Tyres | TPE |
| Loading Surface Height (mm) | 206 |
| Usable Surface Length (mm) | 1000 |
| Usable Surface Width (mm) | 600 |
| Total Length (mm) | 1042 |
| Total Width (mm) | 605 |
| Total Height (mm) | 206 |
| Note | for storeroom trolleys 1202-7016 |
