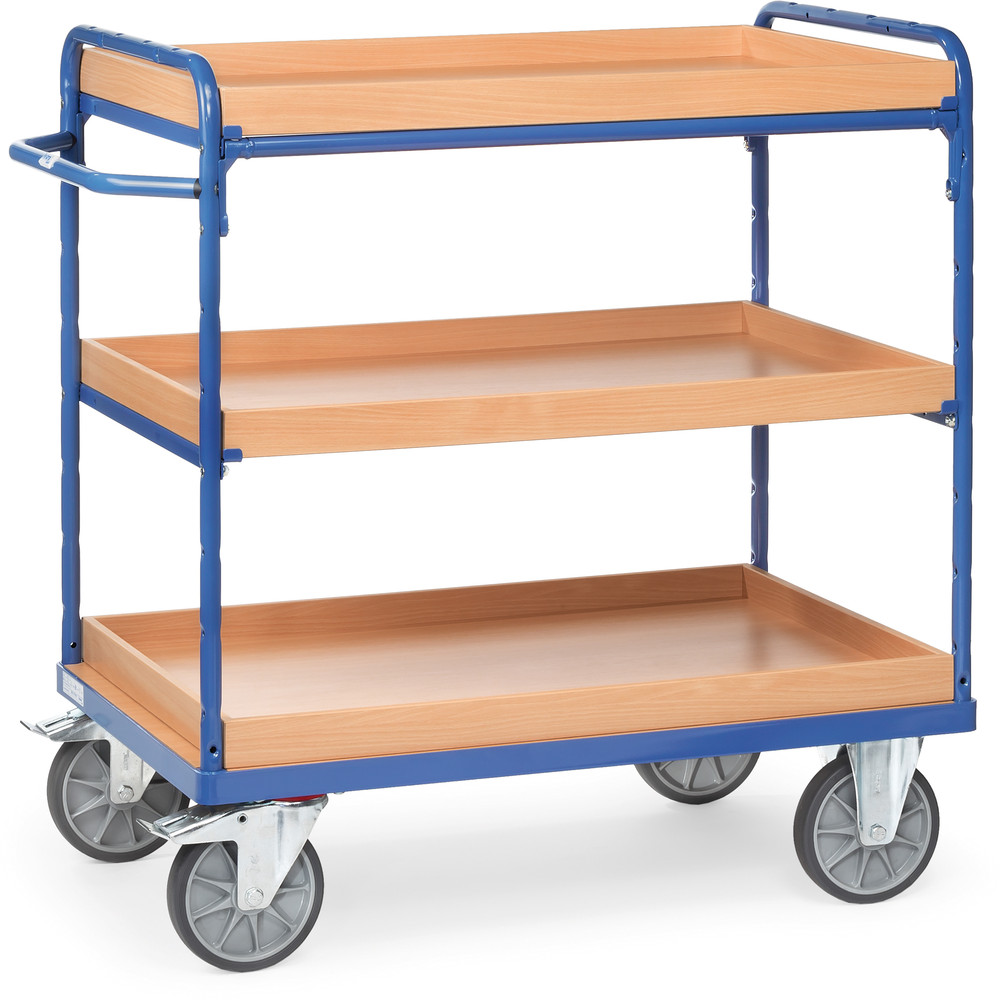

Shelved trolley with boxes
500 kg load capacity, 3 shelves, 1111 mm high
item number 8120
Usable Surface Length (mm) x Usable Surface Width (mm)
Would you like to adapt the article to your needs? Take a look at the additional options:
Tyres
![Wheels with blue-grey elastic tyres]( "Wheels with blue-grey elastic tyres")
![Changing into 4 swivel castors]( "Changing into 4 swivel castors")
![Wheels with polyamide]( "Wheels with polyamide")
![Wheels with polyurethane tyres]( "Wheels with polyurethane tyres")
![Wheels with electrically conductive TPE-ESD-tyres]( "Wheels with electrically conductive TPE-ESD-tyres")
Wheels with blue-grey elastic tyres +€109.00
item number: 12865
Changing into 4 swivel castors +€18.00
item number: 1288
Wheels with polyamide +€50.00
item number: 1296
Wheels with polyurethane tyres +€199.00
item number: 2180
Wheels with electrically conductive TPE-ESD-tyres +€105.00
item number: 2183
Show all additional options
Hide additional options
€573.00
Content:
1 Stück
Delivery time: 1 - 2 Weeks
item number
8120
Share this article:
Product information
Modular system: Shelved trolleys made of tubular and sectional steel, welded and powder-coated blue RAL 5007, bolted construction. Ends of tubular construction, open. 1 fix and 2 variable boxes made of special wood material boards, surface beech grain. Box height 60 mm. Variable use of boxes, in a grid of 100 mm. Capacity of boxes 120 kg. Wheels: 2 swivel and 2 fixed-wheel castors, TPE tyres, hubs with precision deep grove ball bearing. Swivel castors with wheel locks.
Technical Data
| Total Load Capacity (kg) | 500 |
| Load capacity per shelf (kg) | 120 |
| Wheel Size (mm) | 160 |
| Tyres | TPE |
| Usable Surface Length (mm) | 815 |
| Usable Surface Width (mm) | 455 |
| Shelf Heights (mm) | 228, 628, 1028 |
| Total Length (mm) | 1019 |
| Total Width (mm) | 509 |
| Total Height (mm) | 1111 |
Place of use
- Industry
- Stock
- Workshop
Purpose of use
- Transport of small parts on multiple levels
