Trolley for sheet material (without tubular supports)
1200 kg, 7 positions for insertable tubular supports
item number 4463-1
Usable Surface Length (mm) x Usable Surface Width (mm)
![Shaft and tow hitch]( "Shaft and tow hitch")
![TOTALSTOP-central brake system]( "TOTALSTOP-central brake system")
![2 swivel castors with directional locking device]( "2 swivel castors with directional locking device")
Would you like to adapt the article to your needs? Take a look at the additional options:
Tyres
![Wheels with polyamide]( "Wheels with polyamide")
![Changing into 4 swivel castors]( "Changing into 4 swivel castors")
![Wheels with polyurethane tyres]( "Wheels with polyurethane tyres")
![Wheels with electrically conductive TPE-ESD-tyres]( "Wheels with electrically conductive TPE-ESD-tyres")
Wheels with polyamide +€52.00
item number: 1286
Changing into 4 swivel castors +€18.00
item number: 1288
Wheels with polyurethane tyres +€205.00
item number: 2181
Wheels with electrically conductive TPE-ESD-tyres +€137.00
item number: 2184
Shaft and tow hitch +€170.00
item number: 12921
TOTALSTOP-central brake system +€55.00
item number: 2210
2 swivel castors with directional locking device +€99.00
item number: 23989
€513.00
Content:
1 Stück
Delivery time: 1 - 2 Weeks
item number
4463-1
Share this article:
Product information

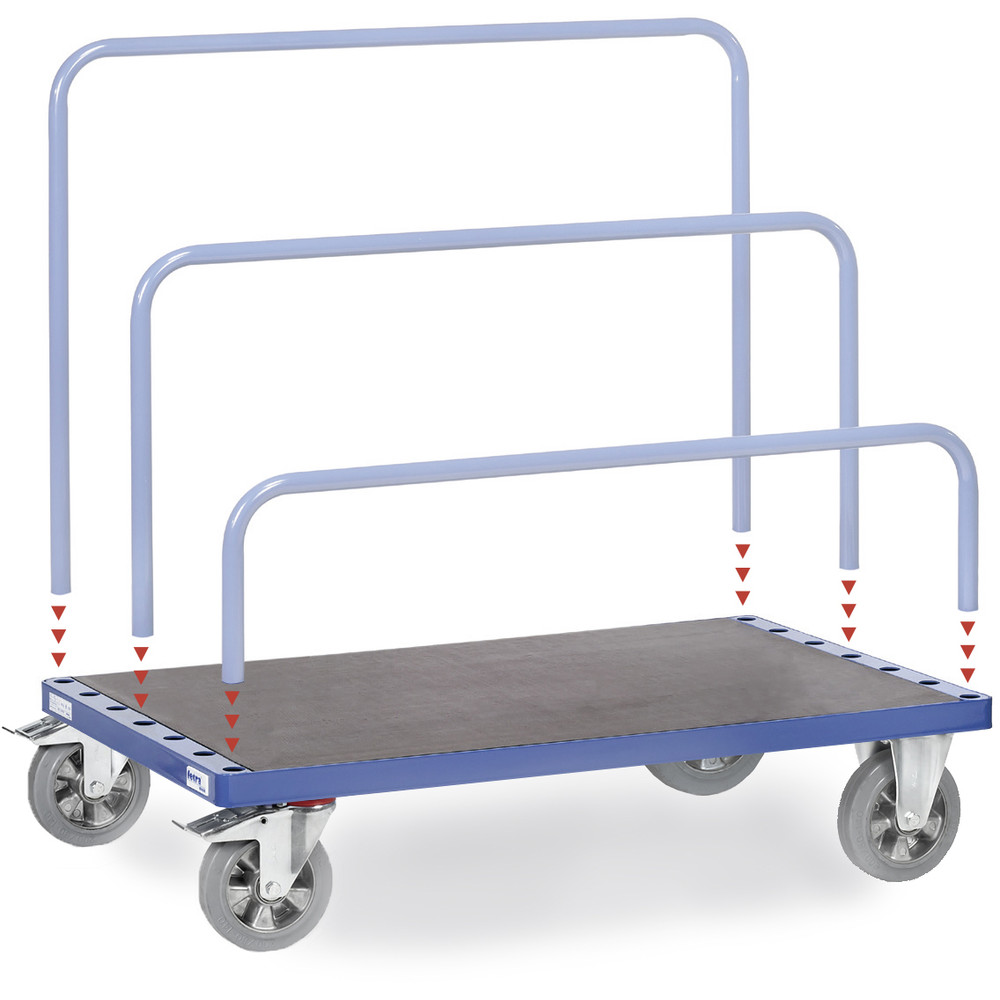

Welded sectional and tubular steel, powder coated, with wooden platform. 7 positions for insertable tubular supports. Clearance between supports 90 mm. 2 swivel and 2 fixed-wheel castors. Swivel castors wheels with wheel lock.
Technical Data
| Total Load Capacity (kg) | 1200 |
| Wheel Size (mm) | 200 |
| Tyres | Elastic solid rubber blue grey |
| Loading Surface Height (mm) | 295 |
| Usable Surface Length (mm) | 1200 |
| Usable Surface Width (mm) | 800 |
| Total Length (mm) | 1320 |
| Total Width (mm) | 800 |
| Total Height (mm) | 295 |
Place of use
- Workshop
- Carpentry
- Kitchen manufacturer
Purpose of use
- Transport of windows
- Transport of doors
- Transport of panels
