Trolley for sheet material (without tubular supports)
750 kg, 7 positions for insertable tubular supports
item number 4463
Usable Surface Length (mm) x Usable Surface Width (mm)
Would you like to adapt the article to your needs? Take a look at the additional options:
Tyres
![Wheels with pneumatic tyres (max. 400 kg capacity)]( "Wheels with pneumatic tyres (max. 400 kg capacity)")
![Wheels with polyamide]( "Wheels with polyamide")
![Wheels with blue-grey elastic tyres]( "Wheels with blue-grey elastic tyres")
![Changing into 4 swivel castors]( "Changing into 4 swivel castors")
![Wheels with polyurethane tyres]( "Wheels with polyurethane tyres")
![Wheels with electrically conductive TPE-ESD-tyres]( "Wheels with electrically conductive TPE-ESD-tyres")
Wheels with pneumatic tyres (max. 400 kg capacity) +€147.00
item number: 1100
Wheels with polyamide +€52.00
item number: 1286
Wheels with blue-grey elastic tyres +€109.00
item number: 12875
Changing into 4 swivel castors +€18.00
item number: 1288
Wheels with polyurethane tyres +€205.00
item number: 2181
Wheels with electrically conductive TPE-ESD-tyres +€137.00
item number: 2184
Show all additional options
Hide additional options
€404.00
Content:
1 Stück
Delivery time: 1 - 2 Weeks
item number
4463
Share this article:
Product information

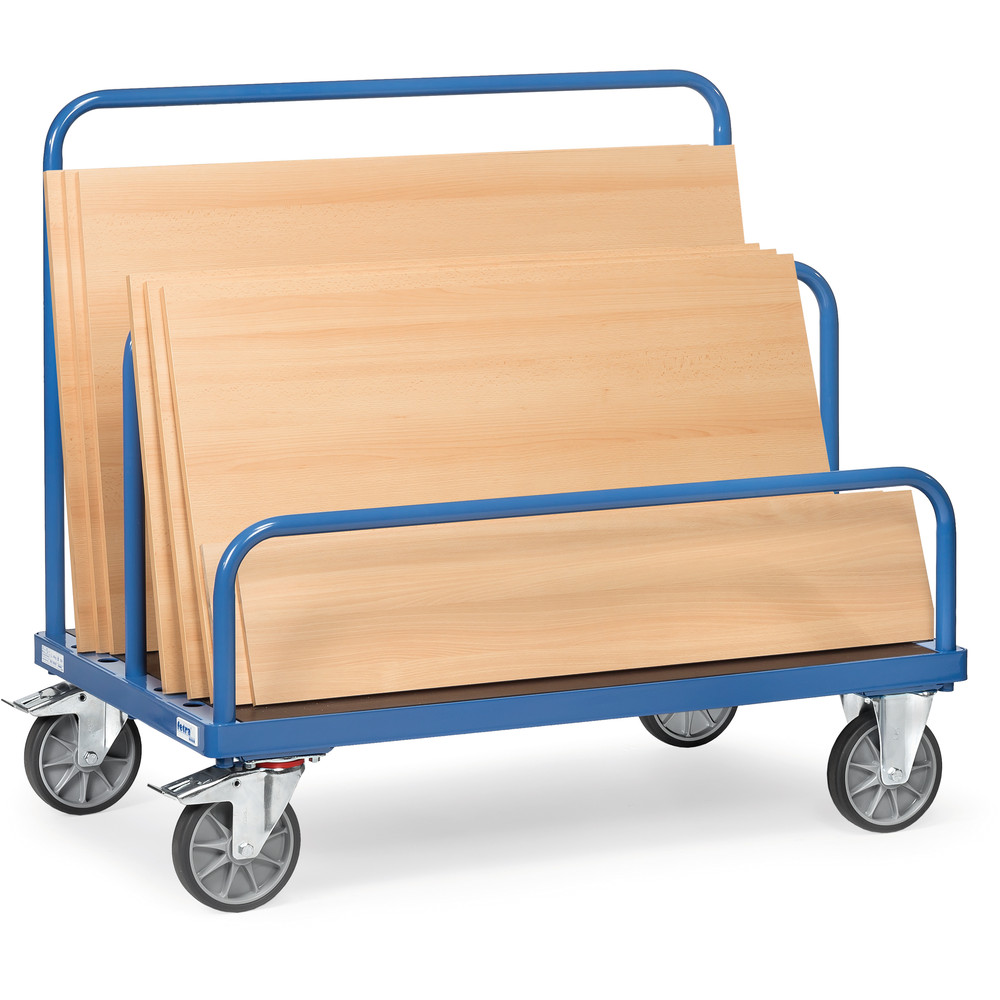

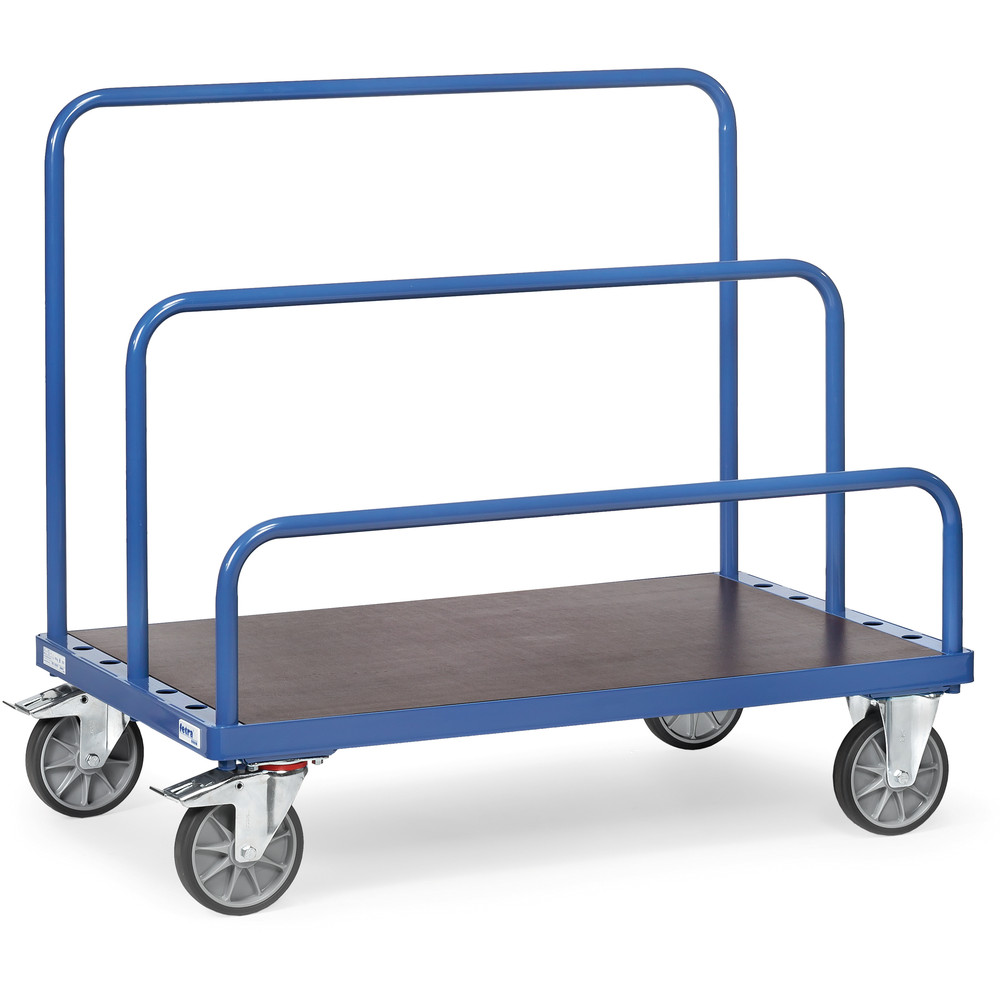

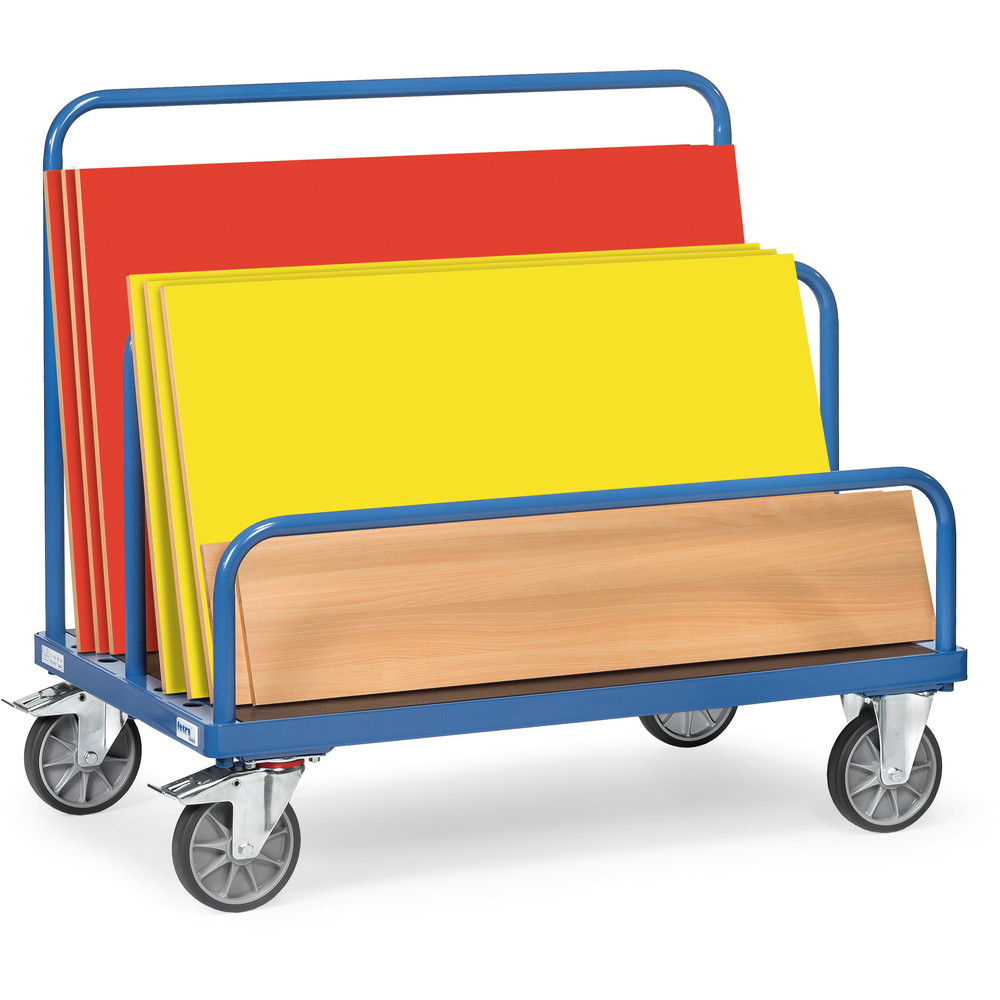

Welded sectional and tubular steel, powder coated, with wooden platform. 7 positions for insertable tubular supports. Clearance between supports 90 mm. 2 swivel and 2 fixed-wheel castors. Swivel castors wheels with wheel lock.
Technical Data
| Total Load Capacity (kg) | 750 |
| Wheel Size (mm) | 200 |
| Tyres | TPE |
| Loading Surface Height (mm) | 295 |
| Usable Surface Length (mm) | 1200 |
| Usable Surface Width (mm) | 800 |
| Total Length (mm) | 1320 |
| Total Width (mm) | 800 |
| Total Height (mm) | 295 |
Place of use
- Workshop
- Carpentry
- Kitchen manufacturer
Purpose of use
- Transport of windows
- Transport of doors
- Transport of panels
