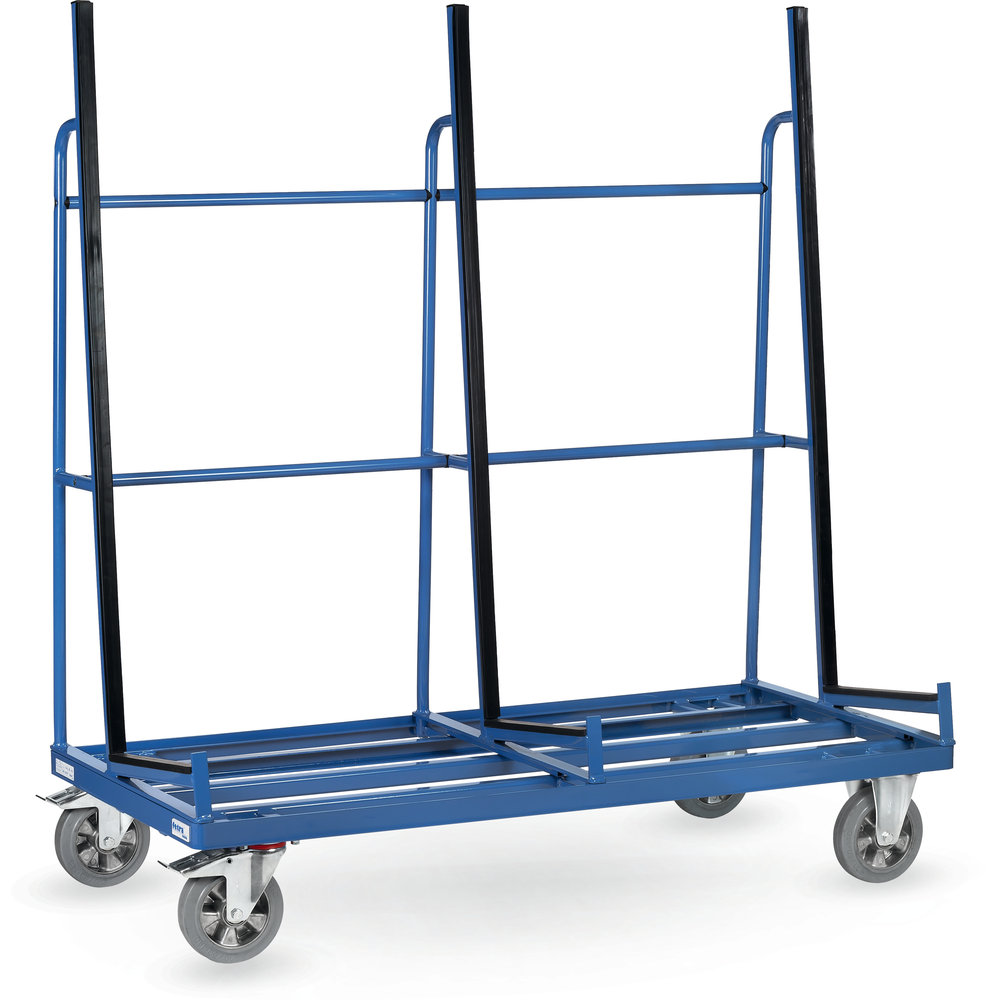

Trolley for sheet material
1200 kg, one-sided support fitted with rubber strip
item number 4455
Usable Surface Length (mm) x Usable Surface Width (mm)
![TOTALSTOP-central brake system]( "TOTALSTOP-central brake system")
Would you like to adapt the article to your needs? Take a look at the additional options:
Tyres
![Changing into 4 swivel castors]( "Changing into 4 swivel castors")
Changing into 4 swivel castors +€18.00
item number: 1288
TOTALSTOP-central brake system +€55.00
item number: 2210
€1,033.00
Content:
1 Stück
Delivery time: 1 - 2 Weeks
item number
4455
Share this article:
Product information
For safe transport of glass panels, wood or plastic plates as well as entire windows or doors. Trolleys for sheet material. Welded sectional and tubular steel. Powder coated blue RAL 5007. Fitted with rubber strip on one side only. 2 swivel and 2 fixed-wheel castors, elasticated solid rubber tyres, blue-grey "trackless", hubs with ball bearings. Swivel castors with wheel lock. Fitted with rubber strip on one side only. Support width 430 mm, support height 1450 mm.
Technical Data
| Total Load Capacity (kg) | 1200 |
| Wheel Size (mm) | 200 |
| Tyres | Elastic solid rubber blue grey |
| Loading Surface Height (mm) | 338 |
| Usable Surface Length (mm) | 1676 |
| Usable Surface Width (mm) | 430 |
| Total Length (mm) | 1676 |
| Total Width (mm) | 800 |
| Total Height (mm) | 1788 |
| Note | Support height: 1450 mm |
Place of use
- Workshop
- Carpentry
- Kitchen manufacturer
Purpose of use
- Transport of windows
- Transport of doors
- Transport of panels
