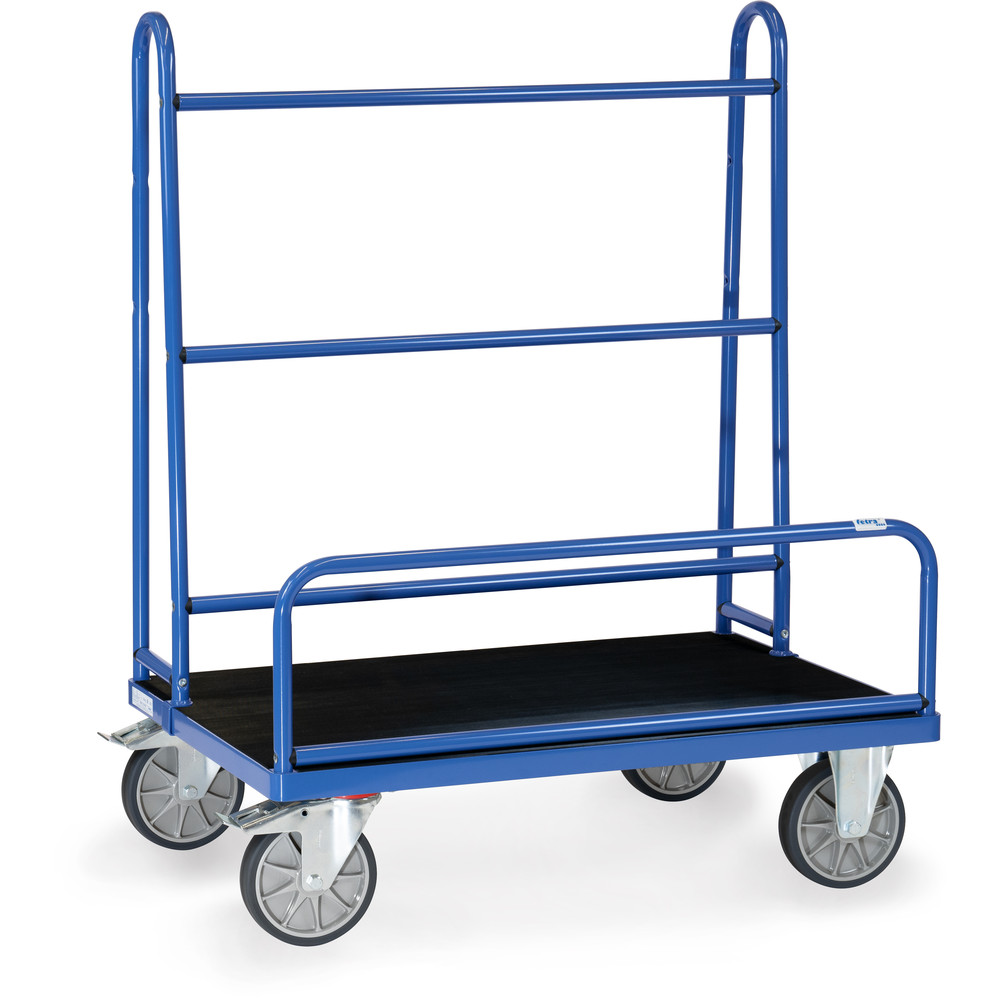

Trolley for sheet material
600 kg, platform with corrugated rubber, with fixed tubular supports
item number 4432
Usable Surface Length (mm) x Usable Surface Width (mm)
Would you like to adapt the article to your needs? Take a look at the additional options:
Tyres
![Wheels with pneumatic tyres (max. 400 kg capacity)]( "Wheels with pneumatic tyres (max. 400 kg capacity)")
![Wheels with polyamide]( "Wheels with polyamide")
![Wheels with blue-grey elastic tyres]( "Wheels with blue-grey elastic tyres")
![Changing into 4 swivel castors]( "Changing into 4 swivel castors")
![Wheels with polyurethane tyres]( "Wheels with polyurethane tyres")
![Wheels with electrically conductive TPE-ESD-tyres]( "Wheels with electrically conductive TPE-ESD-tyres")
Wheels with pneumatic tyres (max. 400 kg capacity) +€144.00
item number: 1100
Wheels with polyamide +€51.00
item number: 1286
Wheels with blue-grey elastic tyres +€107.00
item number: 12875
Changing into 4 swivel castors +€17.00
item number: 1288
Wheels with polyurethane tyres +€201.00
item number: 2181
Wheels with electrically conductive TPE-ESD-tyres +€134.00
item number: 2184
Show all additional options
Hide additional options
€414.00
Content:
1 Stück
Delivery time: 1 Week
item number
4432
Share this article:
Product information
Tubular steel and profile steel welded, powder coated blue RAL 5007. Platform made of derived timber material board, surface covered with corrugated rubber. Bolted tubular steel superstructure. 2 swivel and 2 fixed-wheel castors, TPE tyres, hubs with groove ball bearing. Swivel castors with wheel locks. Effective height: 1050 mm, Height retaining bracket: 300 mm.
Technical Data
| Total Load Capacity (kg) | 600 |
| Wheel Size (mm) | 200 |
| Tyres | TPE |
| Loading Surface Height (mm) | 271 |
| Usable Surface Length (mm) | 1070 |
| Usable Surface Width (mm) | 435 |
| Total Length (mm) | 1070 |
| Total Width (mm) | 710 |
| Total Height (mm) | 1321 |
| Note | Support height: 1050 mm, height retaining bracket: 300 mm |
