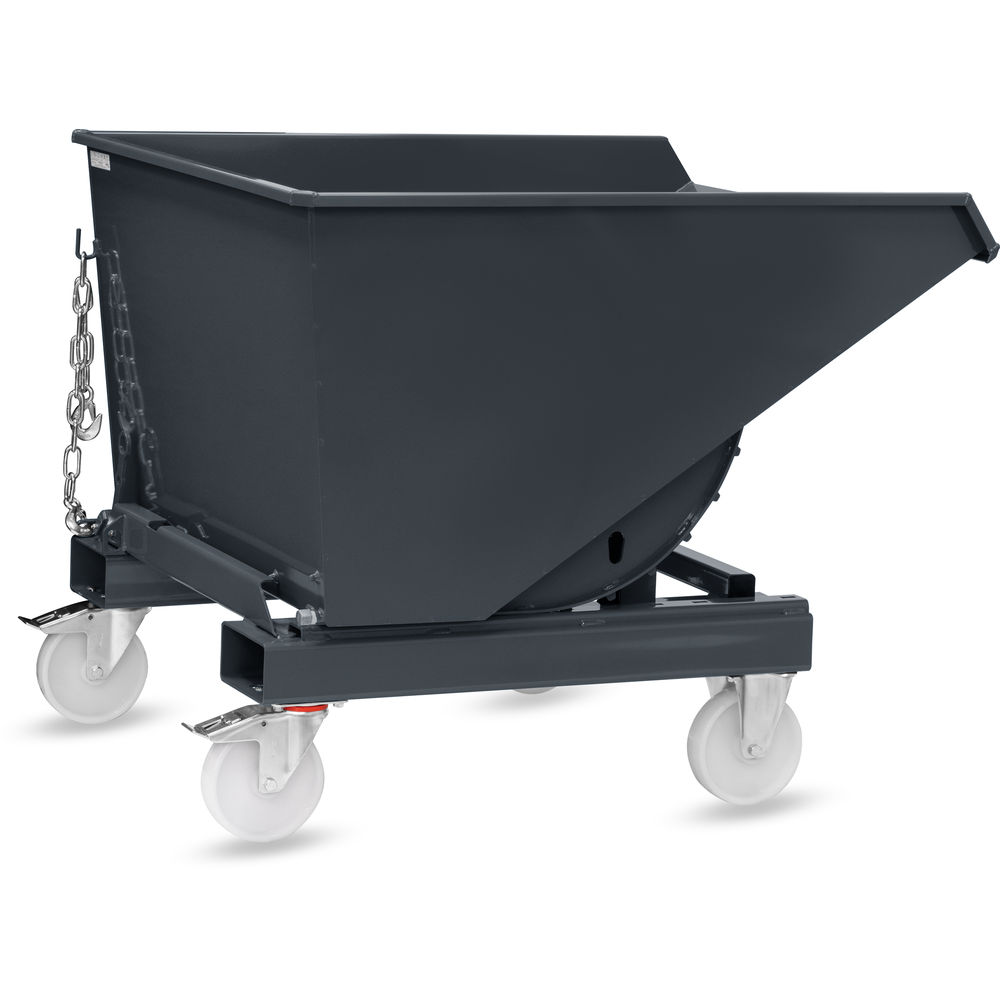

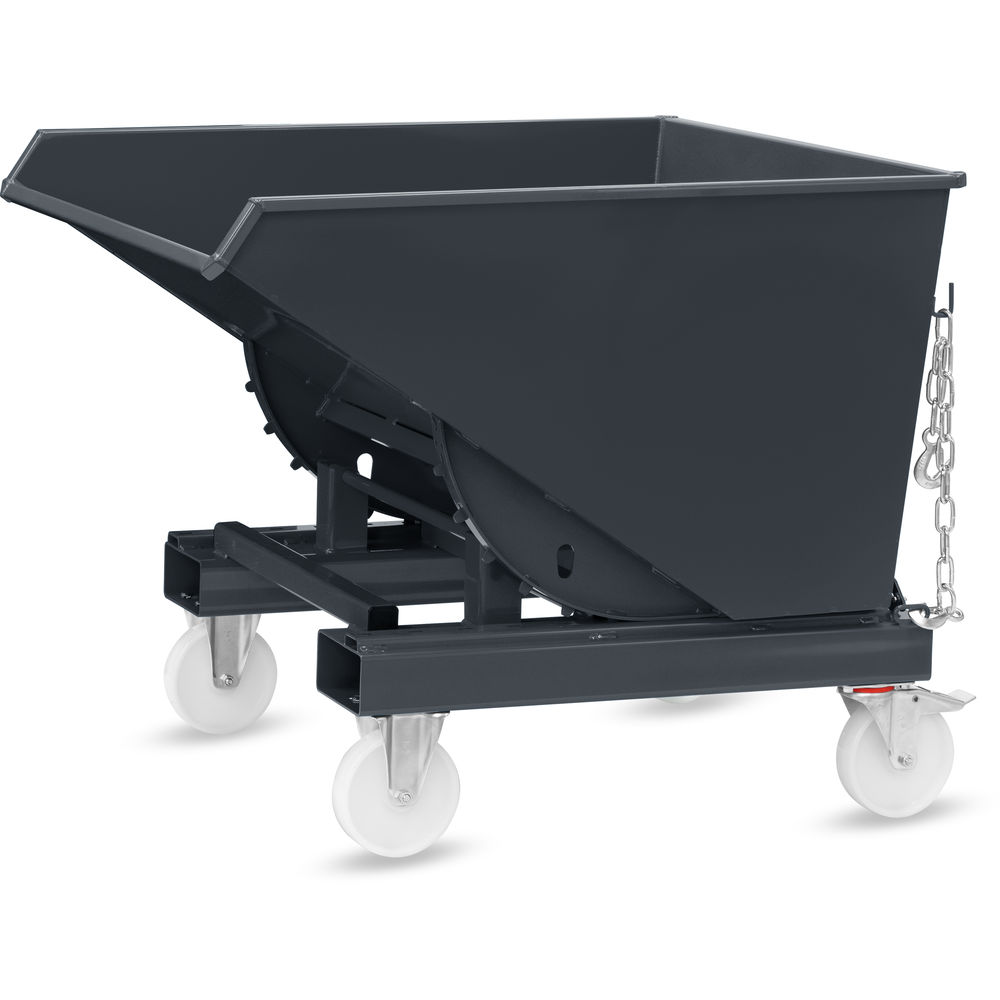

Self-tilting box 600 litres with set of wheels
for bulk goods for automatic tipping over skids
item number 6060R-7016
Version
€1,335.00
Content:
1 Stück
Delivery time: 2 - 3 Weeks
item number
6060R-7016
Share this article:
Product information

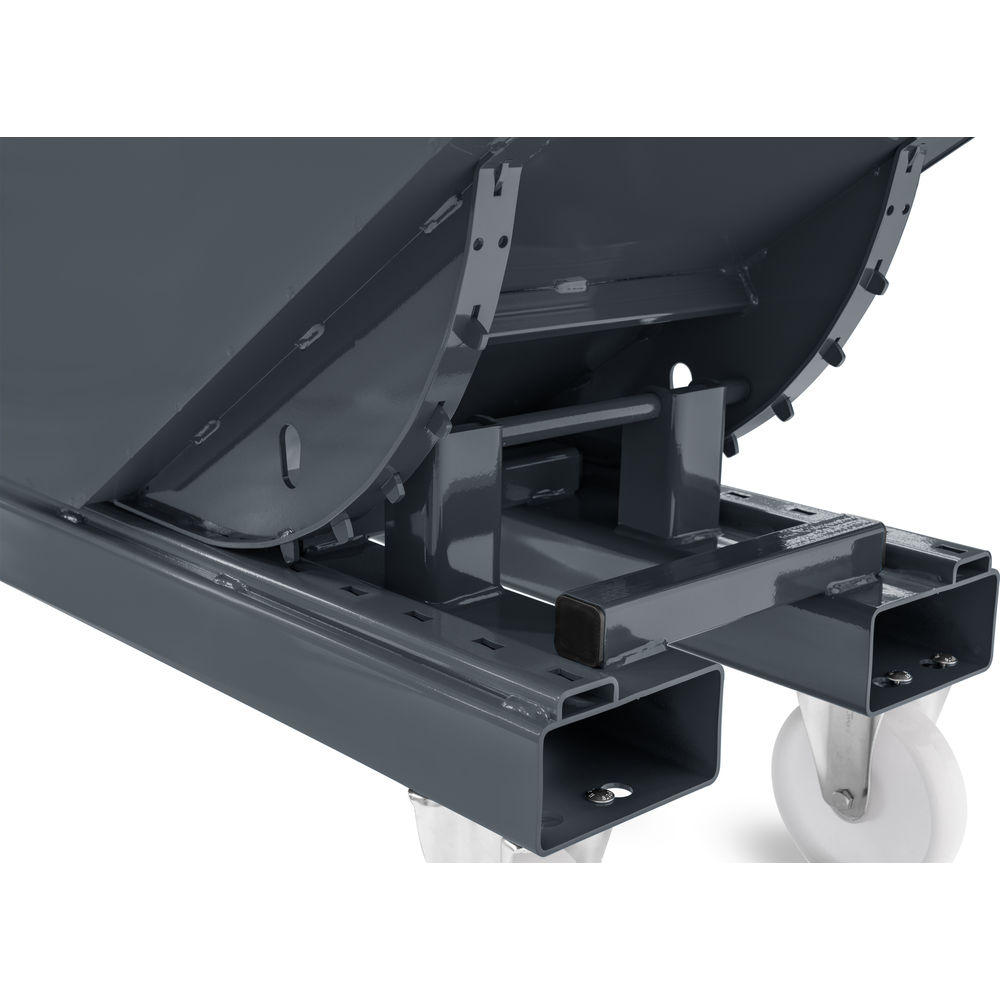

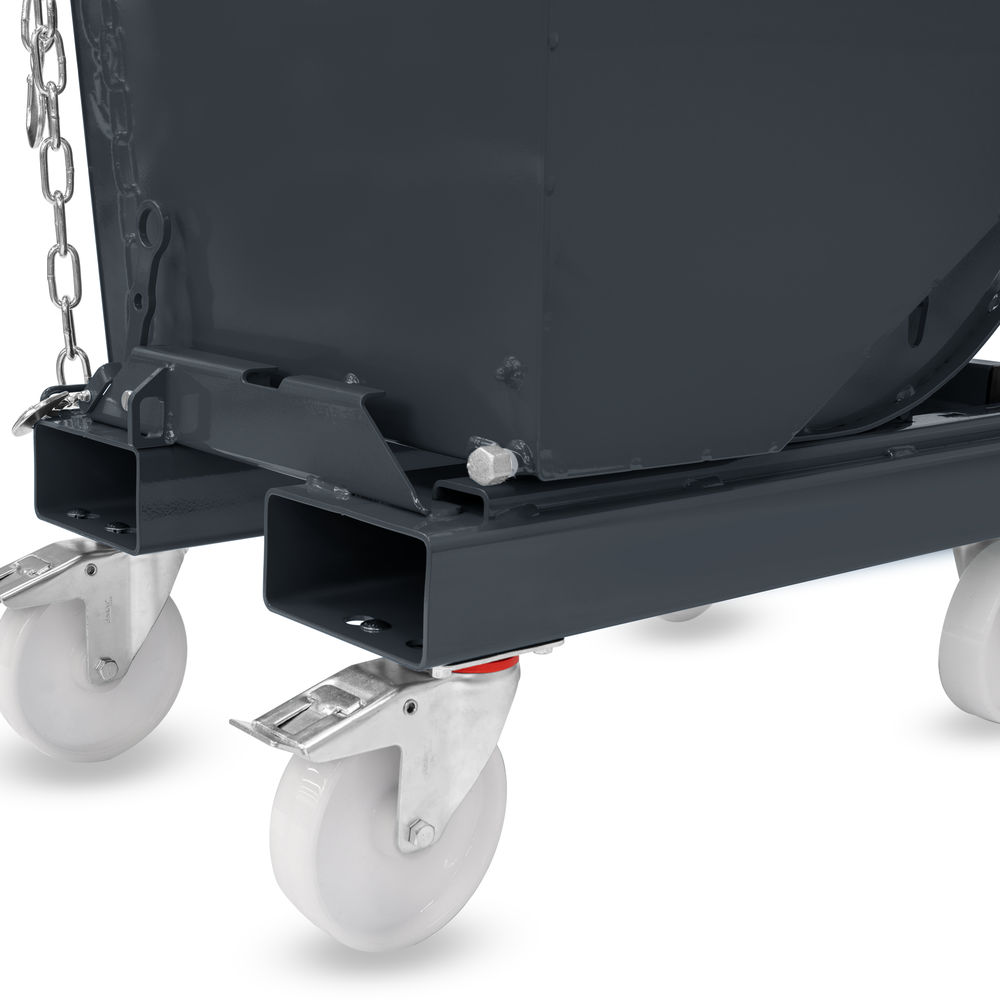

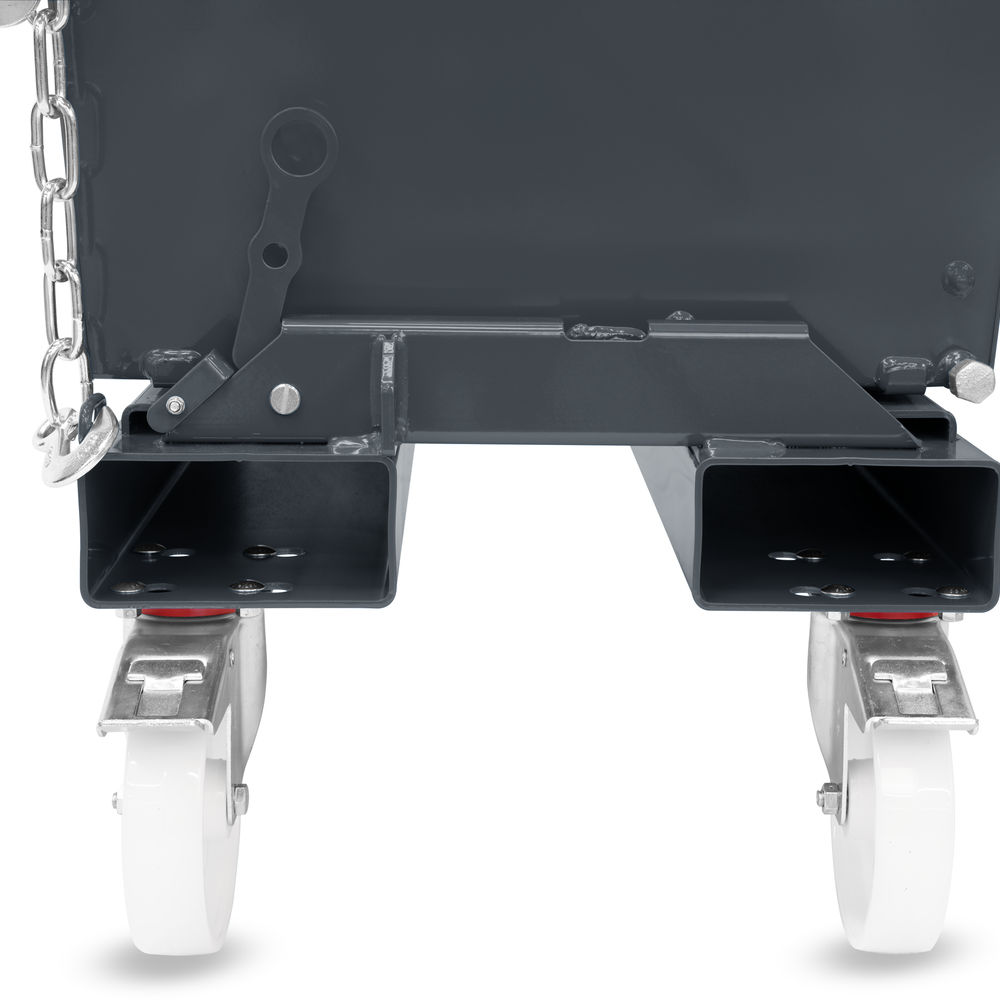

Self-tilting boxes need not to be lifted for emptying. The empty box moves automatically back into loading position. Sturdy welded 3 mm sheet steel design, powder coated in RAL 7016 anthracite grey. Standard-fitted fork-lift sleeves, anti-roll safety device and tilt lock. Link chain as anti-skidding and safety device. Traction cable to activate tilting mechanism, operated from fork-lift truck driver's seat. 2 swivel and 2 fixed-wheel castors made of polyamide,size 200 x 50 mm, fitted underneath the fork-lift sleeves. Swivel castors with wheel locks.
Technical Data
| Total Load Capacity (kg) | 1500 |
| Wheel Size (mm) | 200 |
| Tyres | Polyamide |
| Total Length (mm) | 1399 |
| Total Width (mm) | 1141 |
| Total Height (mm) | 1080 |
| Box Dimensions (mm) | 1235 |
| Pouring Edge Height With Wheels (mm) | 981 |
| Content (Liters) | 600 |
| Version | without drainage tap |
Place of use
- Industry
- Machining operation
Purpose of use
- Disposal of bulk materials
- Disposal of industrial waste
