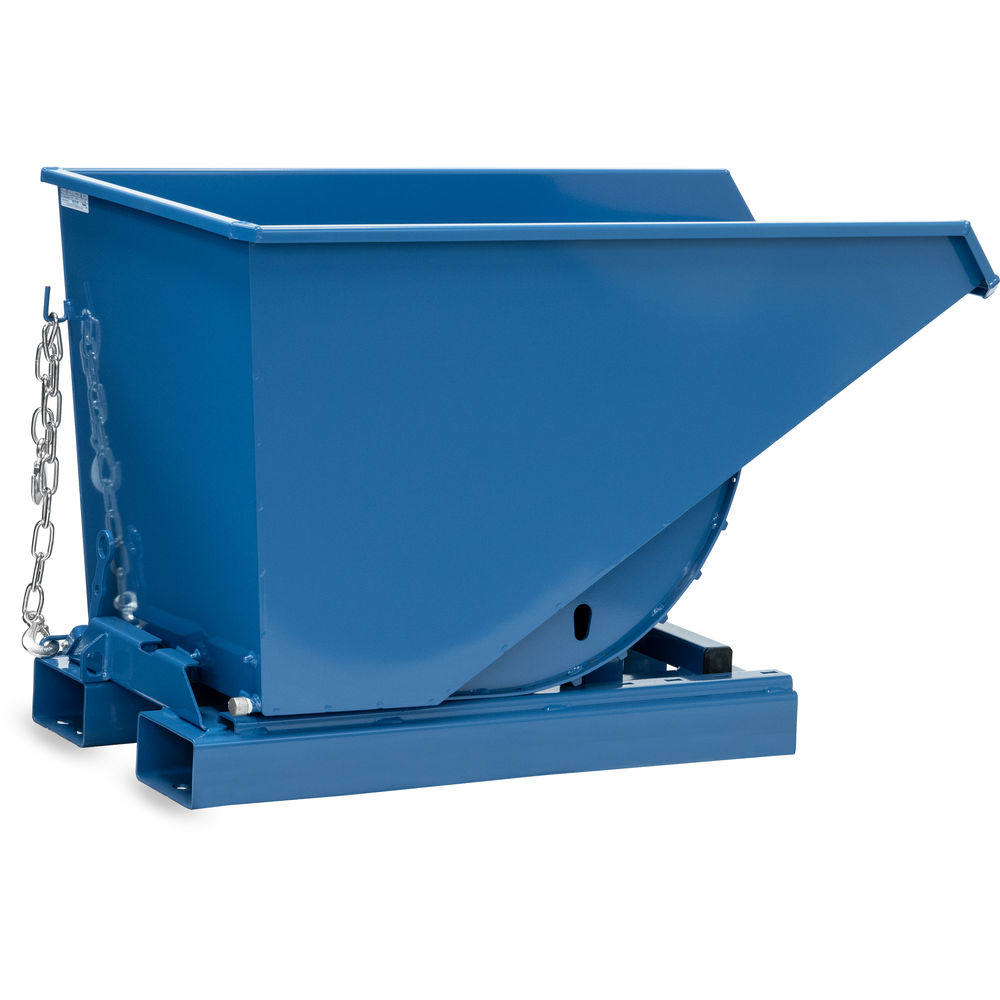

Self-tilting box 350 litres
for bulk goods for automatic tipping over skids
item number 6030
Version
![Set of wheels polyamide]( "Set of wheels polyamide")
Would you like to adapt the article to your needs? Take a look at the additional options:
Set of wheels polyamide +€135.00
item number: 1567
€1,028.00
Content:
1 Stück
Delivery time: 1 Week
item number
6030
Share this article:
Product information
Self-tilting boxes need not to be lifted for emptying. The empty box moves automatically back into loading position. Sturdy welded 3 mm sheet steel design, powder coated in RAL 5007 blue. Standard-fitted fork-lift sleeves, anti-roll safety device and tilt lock. Link chain as anti-skidding and safety device. Traction cable to activate tilting mechanism, operated from fork-lift truck driver's seat.
Technical Data
| Total Load Capacity (kg) | 1000 |
| Total Length (mm) | 1294 |
| Total Width (mm) | 731 |
| Total Height (mm) | 833 |
| Box Dimensions (mm) | 1237 |
| Pouring Edge Height Without Wheels (mm) | 744 |
| Pouring Edge Height With Wheels (mm) | 981 |
| Content (Liters) | 350 |
| Version | without drainage tap |
Place of use
- Industry
Purpose of use
- Disposal of bulk materials
