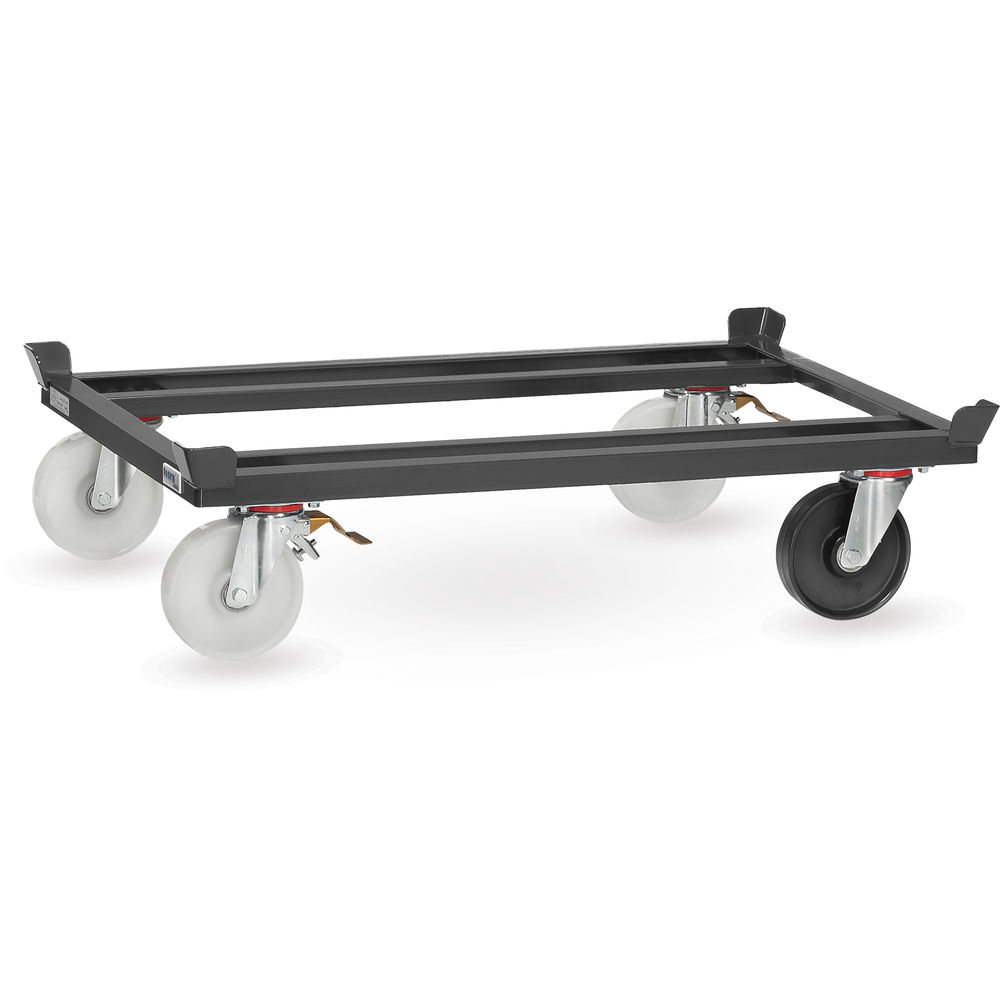

Pallet dolly for tugger trains "GREY EDITION"
1050 kg, suitable for transport on standard tugger train trailers
item number 23892-7016
Usable Surface Length (mm) x Usable Surface Width (mm)
![Push handle for pallet dollies "GREY EDITION"]( "Push handle for pallet dollies \"GREY EDITION\"")
![1 Swivel castor with directional locking device]( "1 Swivel castor with directional locking device")
![2 Swivel castor with fixed locking device operating levers]( "2 Swivel castor with fixed locking device operating levers")
Would you like to adapt the article to your needs? Take a look at the additional options:
Push handle for pallet dollies "GREY EDITION" +€112.00
item number: 22890-7016
1 Swivel castor with directional locking device +€44.00
item number: 23990
2 Swivel castor with fixed locking device operating levers +€77.00
item number: 23991
€420.00
Content:
1 Stück
Delivery time: 2 - 3 Weeks
item number
23892-7016
Share this article:
Product information
Powder coated in anthracite grey RAL 7016. 3 swivel castors with polyamide wheels 200 x 50 mm white, hubs wit precision ball bearings but 1 castor is electrically conductive, black polypropylene wheel body, hub with precision ball bearings. 2 swivel castors with full locking device in the lead, diagonal layout. Ground clearance: 235 mm
Technical Data
| Total Load Capacity (kg) | 1050 |
| Wheel Size (mm) | 200 |
| Tyres | Polyamide |
| Loading Surface Height (mm) | 280 |
| Usable Surface Length (mm) | 1210 |
| Usable Surface Width (mm) | 1010 |
| Total Length (mm) | 1255 |
| Total Width (mm) | 1055 |
| Total Height (mm) | 327 |
| Version | for tugger trains |
Place of use
- Industry
- Stock
Purpose of use
- Transport of pallets
