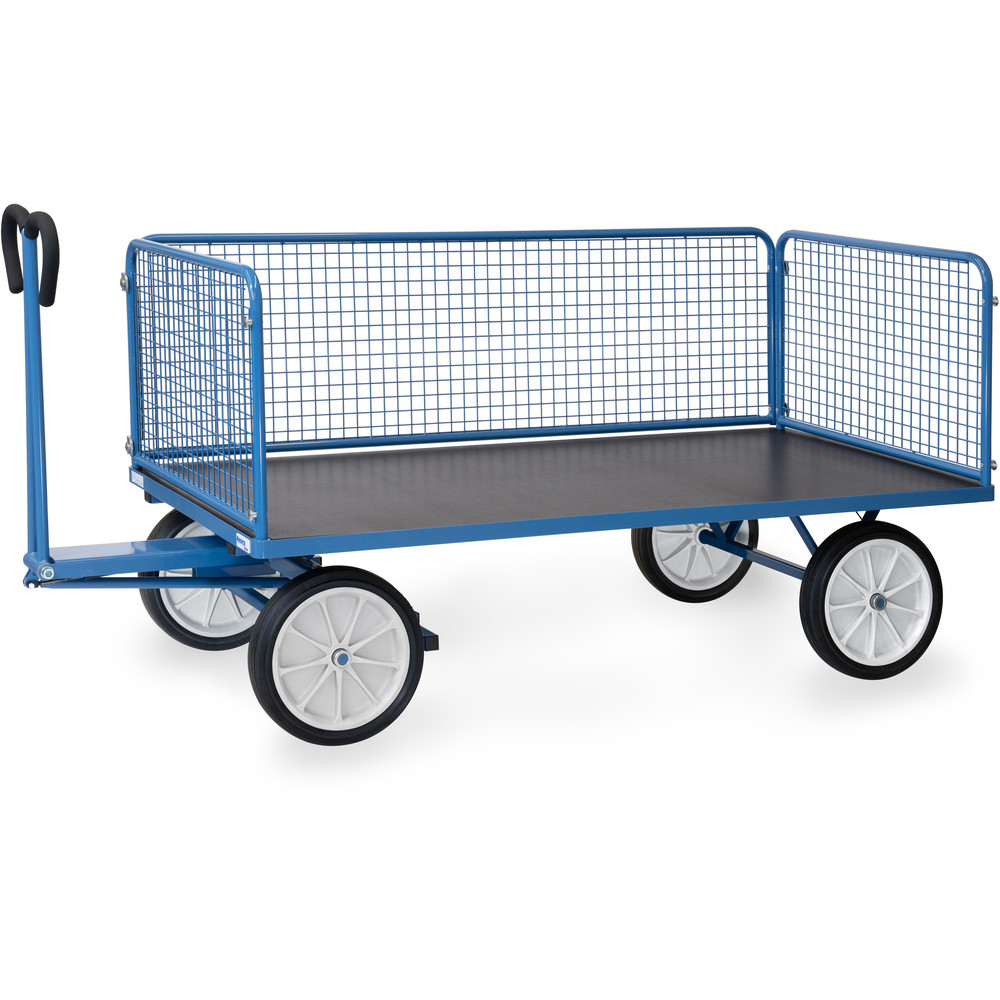

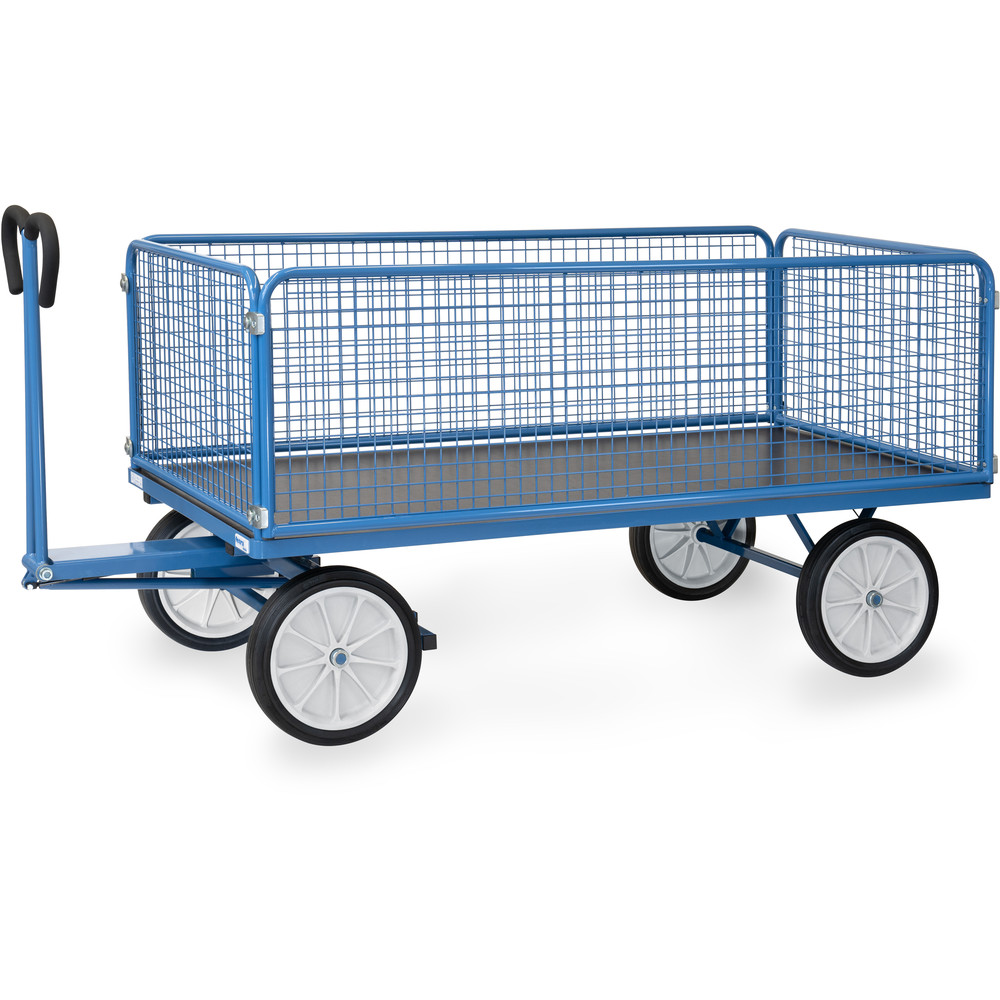

Hand truck
with solid rubber tyres, boards 600 mm high
item number 6436V
Usable Surface Length (mm) x Usable Surface Width (mm)
![Coupling for hand trucks]( "Coupling for hand trucks")
![Punctureproof PU-tyres 400 x 100 mm]( "Punctureproof PU-tyres 400 x 100 mm")
Would you like to adapt the article to your needs? Take a look at the additional options:
Coupling for hand trucks +€75.00
item number: 1442
Punctureproof PU-tyres 400 x 100 mm +€87.00
item number: 1779
€1,636.00
Content:
1 Stück
Delivery time: 1 - 2 Weeks
item number
6436V
Share this article:
Product information

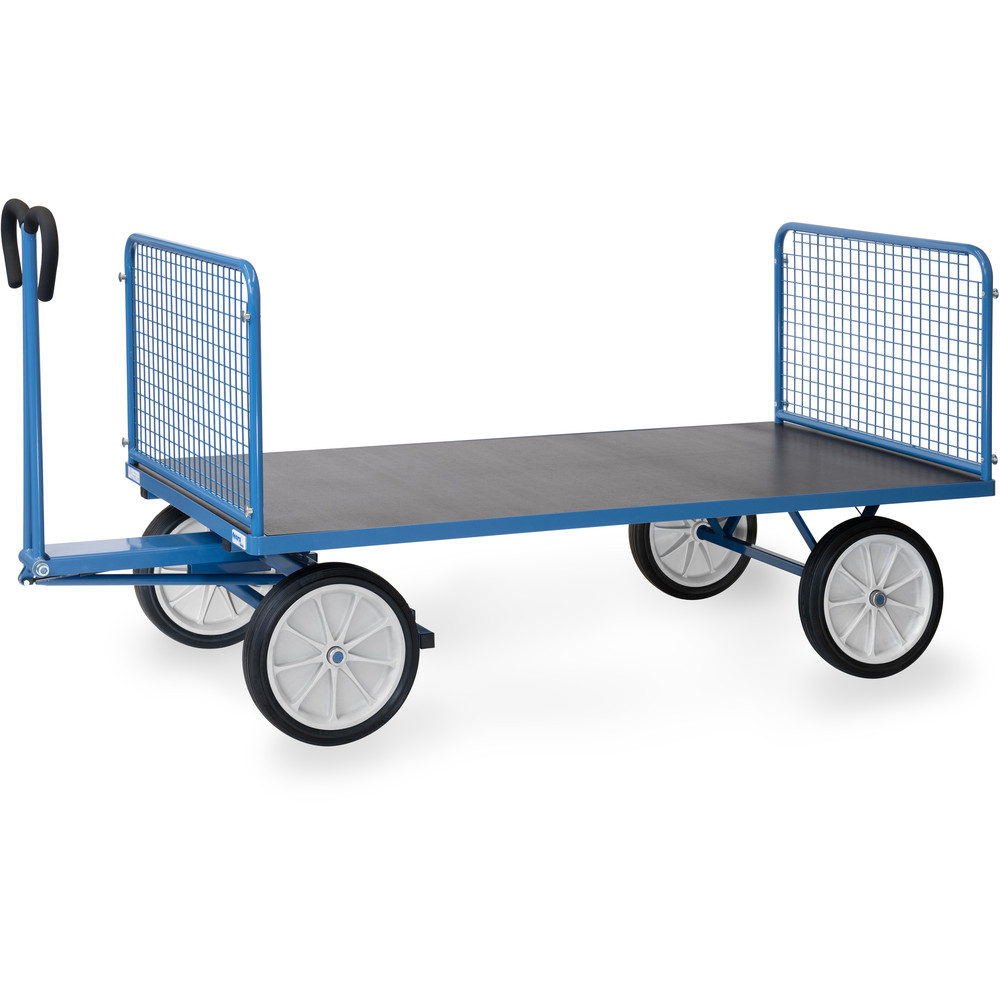

Modular system: Made of welded sectional steel, powder coated blue RAL 5007. Surface durably protected, resistant to impact and scratches, 4 tubular sleeves at corners. Boogie steered by crown gear, scissors-shaped shaft with safety handle with soft rubber grip and with an automatic damped retraction in resting position. Platform of anti-slipping, waterproof plywood. Wheels with solid rubber tyres, hubs with roller bearings. With automatic braking system effective on the front wheels. Boards 600 mm high, sides screwed on platform, Sides mountable and removable. Tubular steel frame with welded wire lattice 40 x 40 x 4 mm, powder coated blue RAL 5007.
Technical Data
| Total Load Capacity (kg) | 1250 |
| Wheel Size (mm) | 400 |
| Tyres | Solid rubber |
| Loading Surface Height (mm) | 490 |
| Usable Surface Length (mm) | 1935 |
| Usable Surface Width (mm) | 995 |
| Total Length (mm) | 2350 |
| Total Width (mm) | 1050 |
| Total Height (mm) | 1190 |
| Version | with wire lattice boards |
