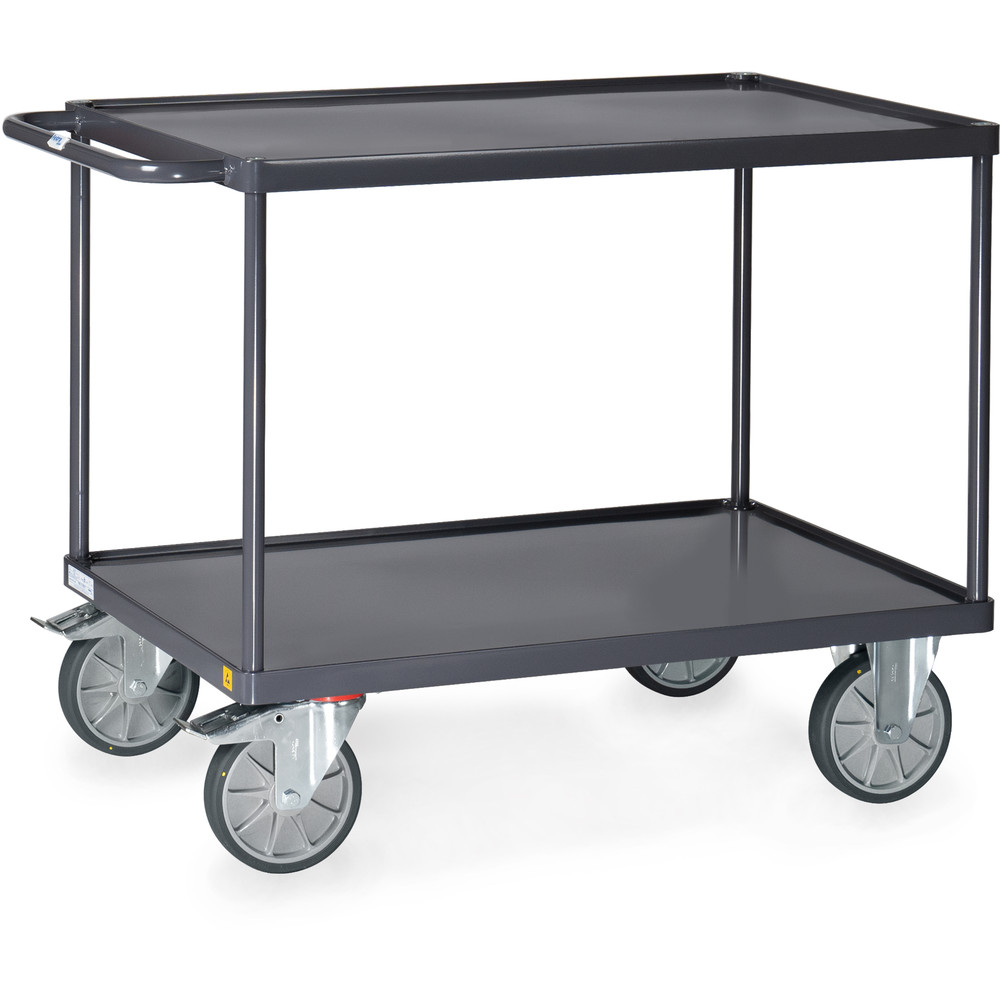

fetra® ESD-Table top cart 9400W - electrically conductive

▶

Usable Surface Length (mm) x Usable Surface Width (mm)

Would you like to adapt the article to your needs? Take a look at the additional options:

Tyres

Changing into 4 swivel castors +€18.00 item number: 1288

select

selected

TOTALSTOP-central brake system +€55.00 item number: 2210

select

selected

FIXSTOP - central directional locking +€141.00 item number: 2220

select

selected

2 swivel castors with directional locking device +€99.00 item number: 23989

select

selected

€575.00

Content: 1 Stück

Prices plus VAT plus shipping costs

Delivery time: 2 - 3 Weeks

item number 9400W

Share this article:

Product information

Electrostatic discharge construction (ESD = Electrostatic Discharge). Tubular steel and sectional steel welded, conductive powder coating, slate grey. Screw and plug type construction. 2 electrically conductive platforms, trays made of steel sheet, with rim 10 mm high, welded oil-tight, powder coated. 2 swivel and 2 fixed-wheel castors. Wheels electrically conductive (anti-static) with TPE-ESD tyres (thermoplastic elastomer). Hubs with precision deep groove ball bearing. Maximum comfort: Very low starting, rolling and swivelling resistance. Low noise operation on level floors. Tyres are non-marking. Castors with wheel lock. Capacity of upper shelve 200 kg.

PDF-Downloads:

Technical Data

Total Load Capacity (kg)	500
Load capacity per shelf (kg)	200
Wheel Size (mm)	160
Tyres	TPE-ESD
Usable Surface Length (mm)	850
Usable Surface Width (mm)	500
Shelf Heights (mm)	228, 860
Total Length (mm)	1047
Total Width (mm)	509
Total Height (mm)	860
