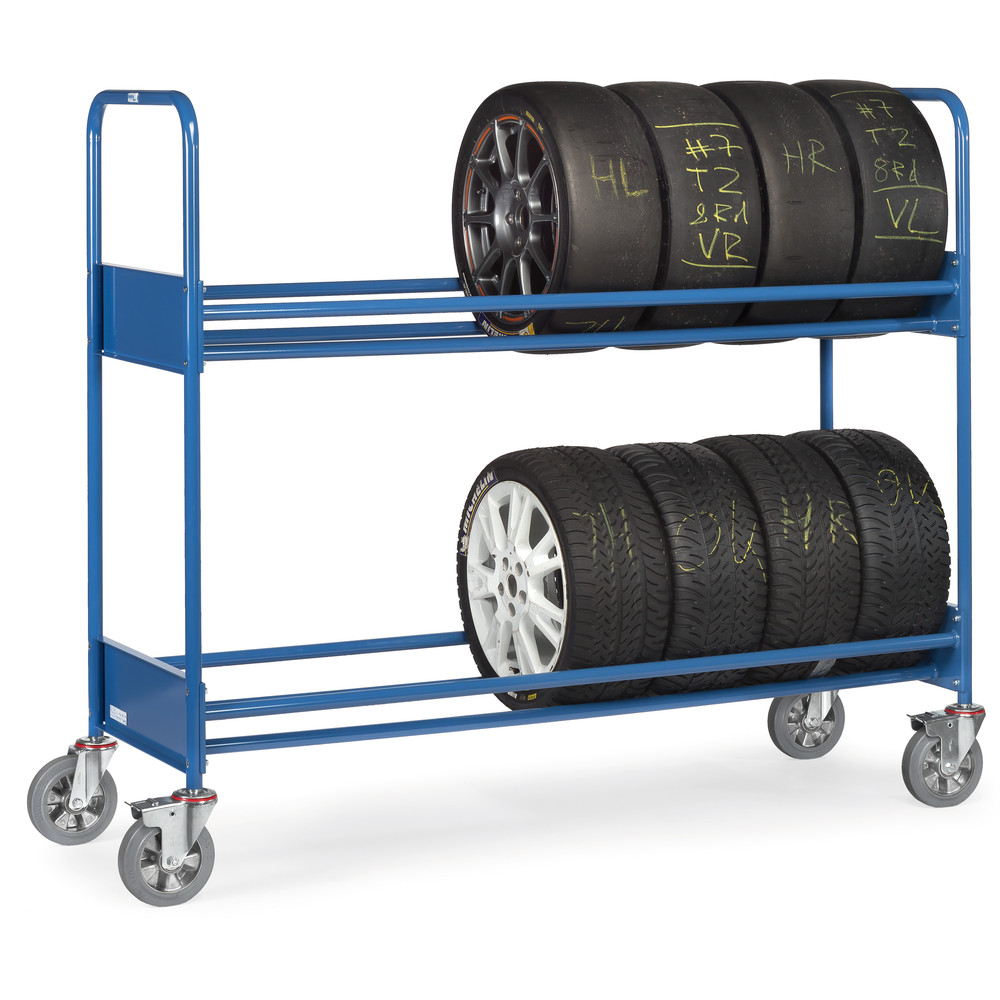

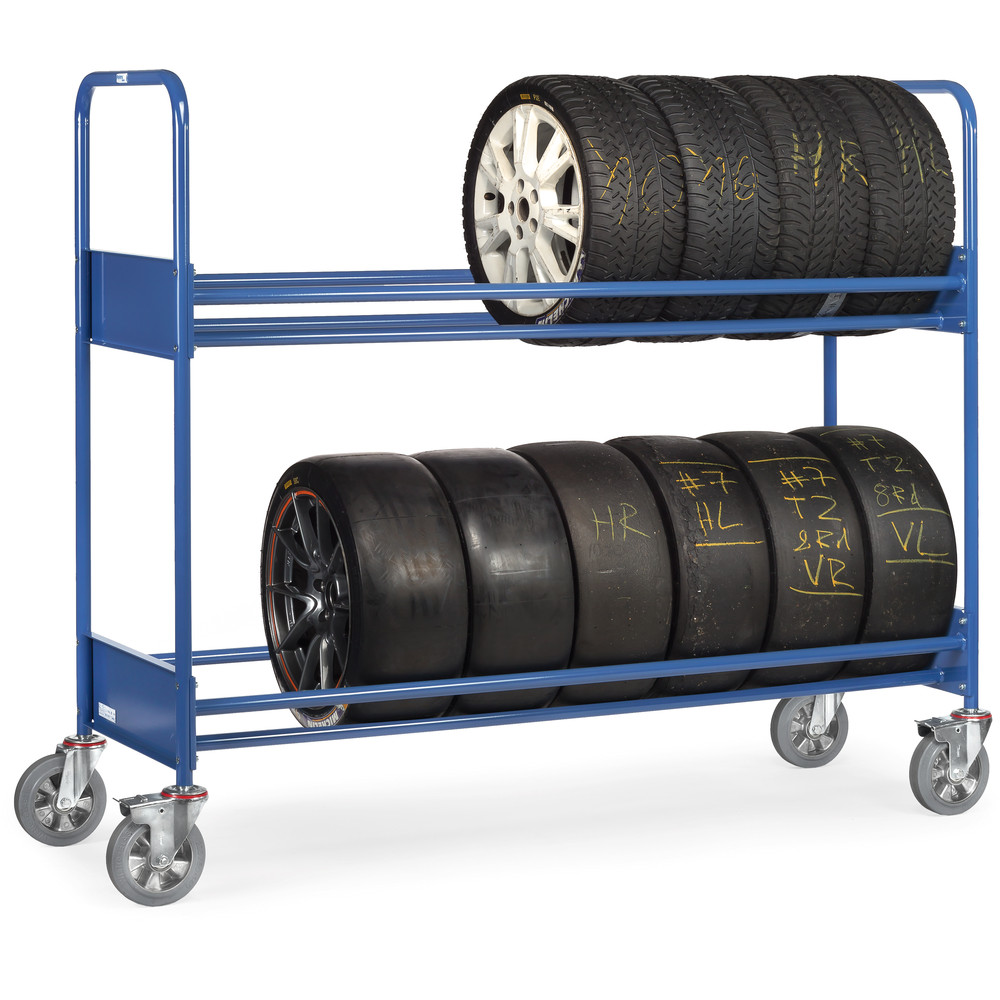

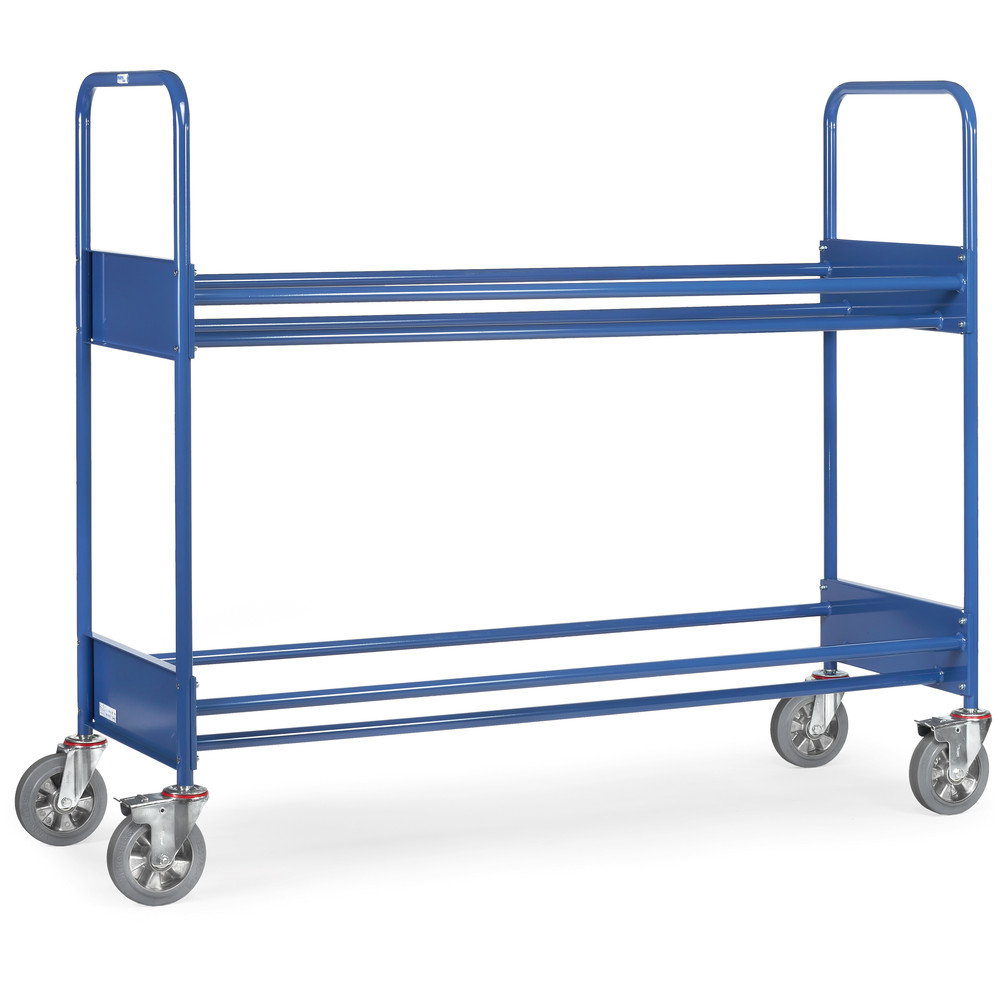

Tyre trolley
500 kg, with 2 platforms, with blue-grey elastic tyres, reinforced version
item number 4588
€649.00
Content:
1 Stück
Delivery time: 2 - 3 Weeks
item number
4588
Share this article:
Product information
Tubular steel construction, screwed together, powder coated blue RAL 5007. 4 swivel castors, solid rubber tyres, blue-grey "trackless", hubs with ball bearing. 2 swivel castors with wheel locks. Upper tyre carrier adjustable in interval of 75 mm with clamps on the face ends. Reinforced Version, suitable for high demand, eg. for motorsports as tyre trolley in pit lane.
Technical Data
| Total Load Capacity (kg) | 500 |
| Load capacity per shelf (kg) | 250 |
| Wheel Size (mm) | 200 |
| Tyres | Elastic solid rubber blue grey |
| Usable Surface Length (mm) | 1860 |
| Usable Surface Width (mm) | 618 |
| Total Length (mm) | 1991 |
| Total Width (mm) | 671 |
| Total Height (mm) | 1671 |
| Note | for tyre diameter 400 - 780 mm |
Place of use
- Car repair
Purpose of use
- Transport of tyres
- Storage of tyres
