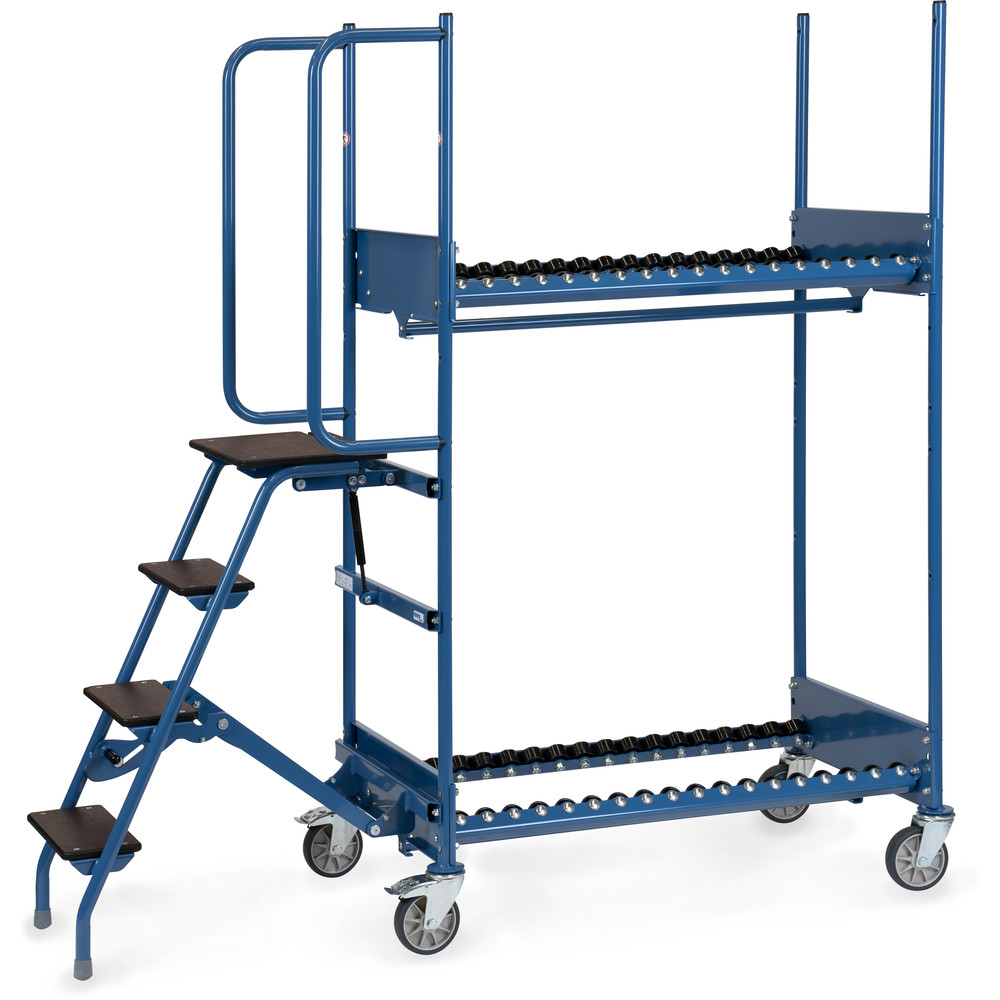

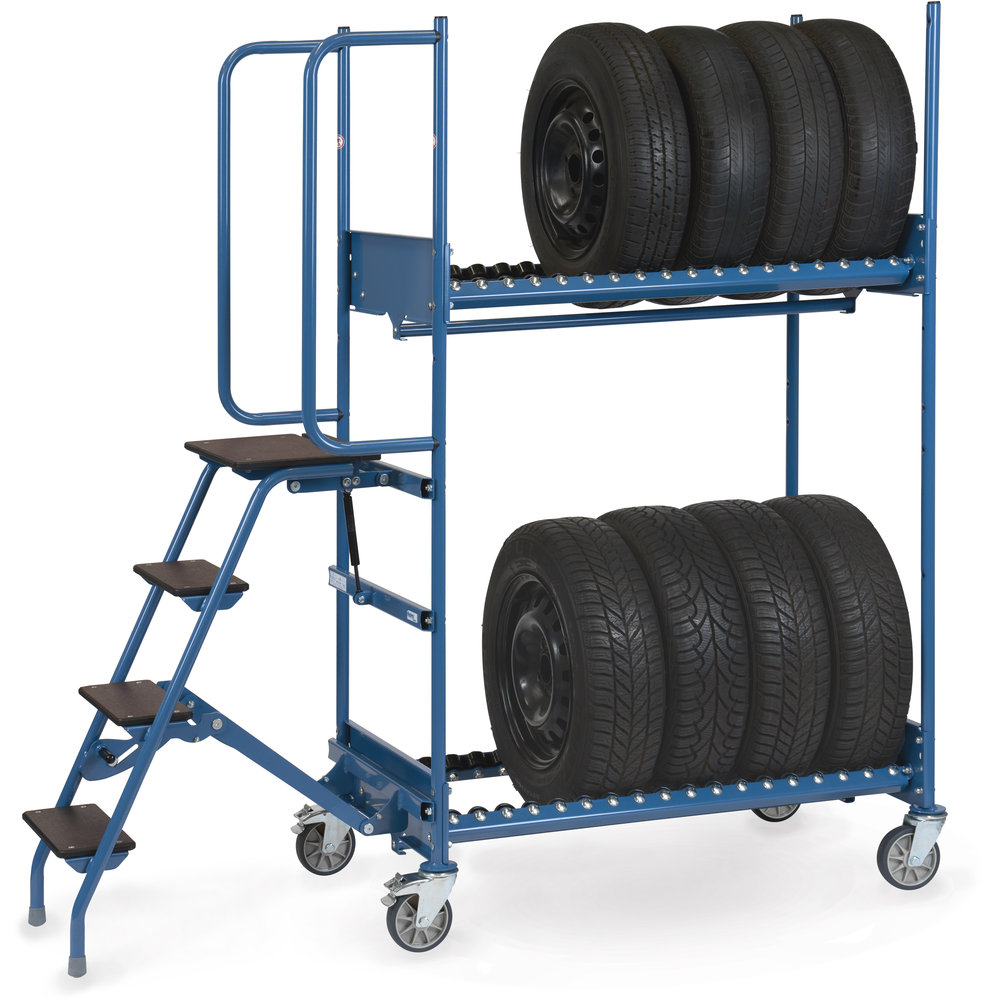

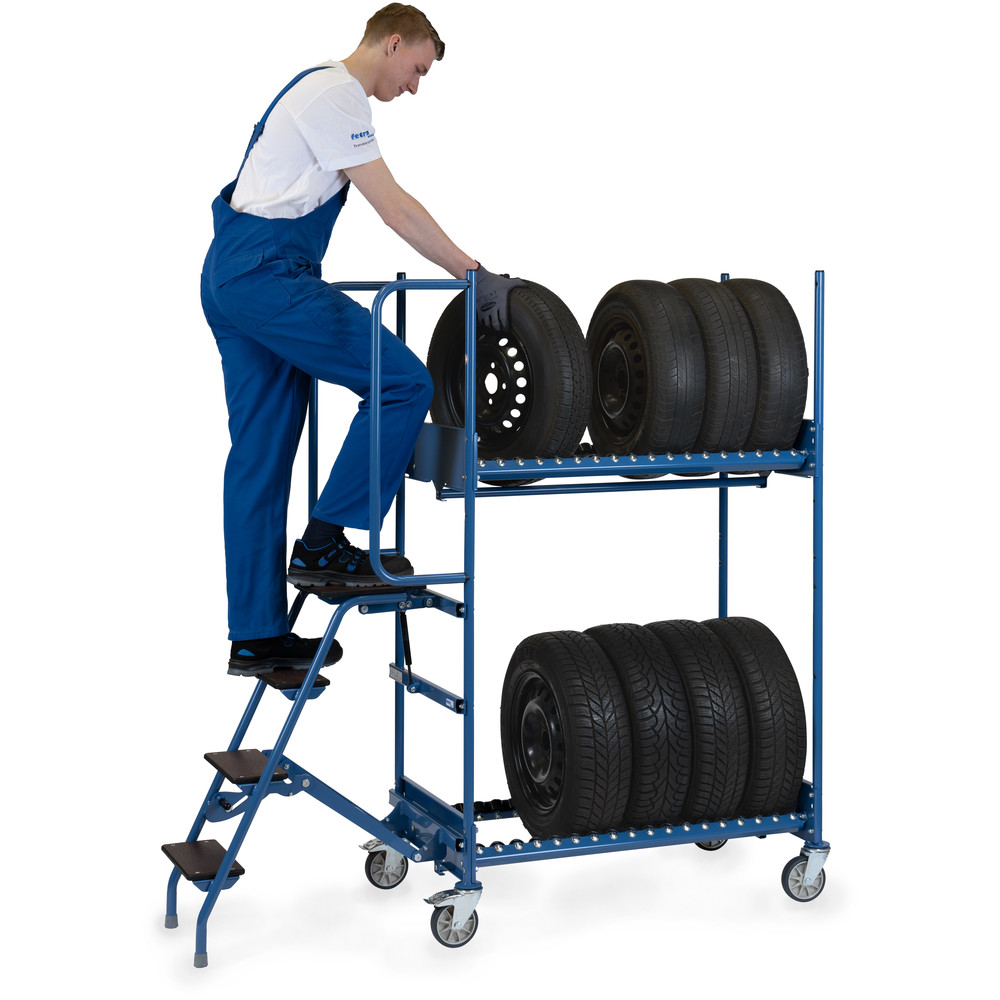

Tyre storeroom trolley
with steps and safety bar
item number 4562
€1,139.00
Content:
1 Stück
Delivery time: 2 - 3 Weeks
item number
4562
Share this article:
Product information

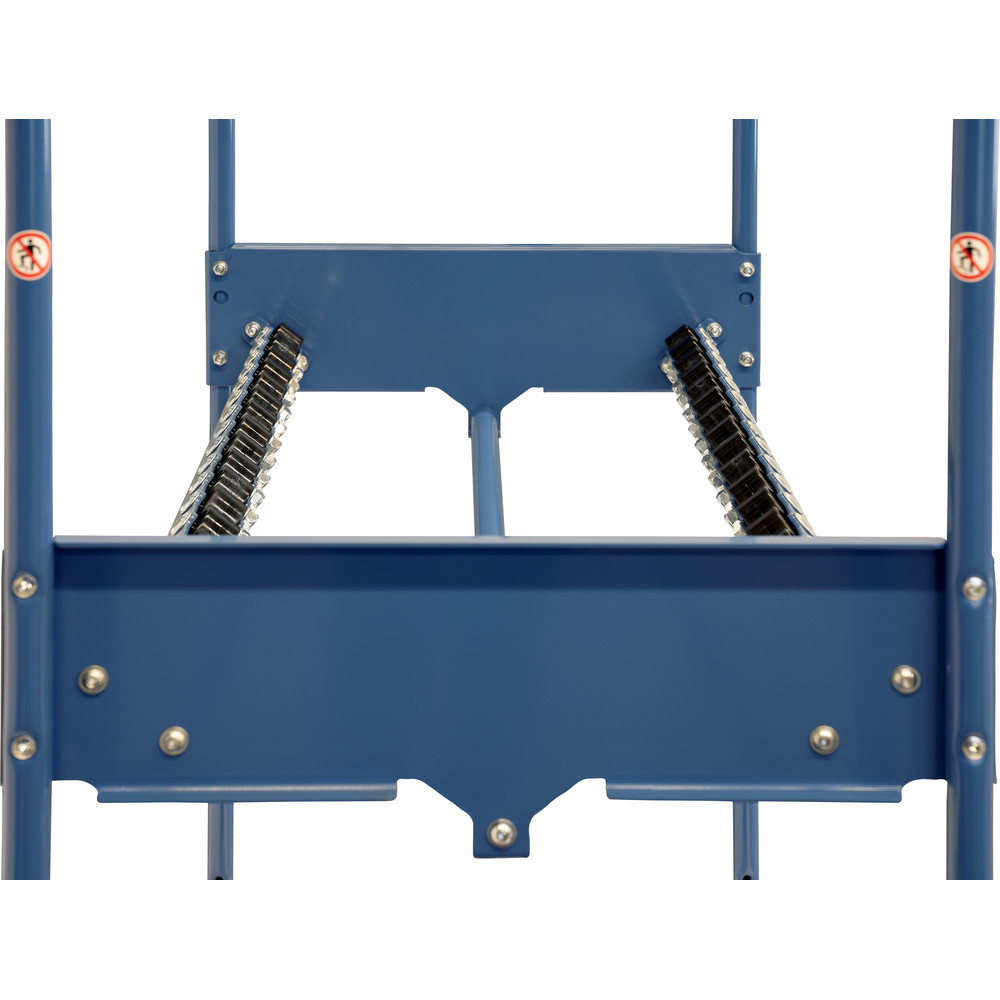

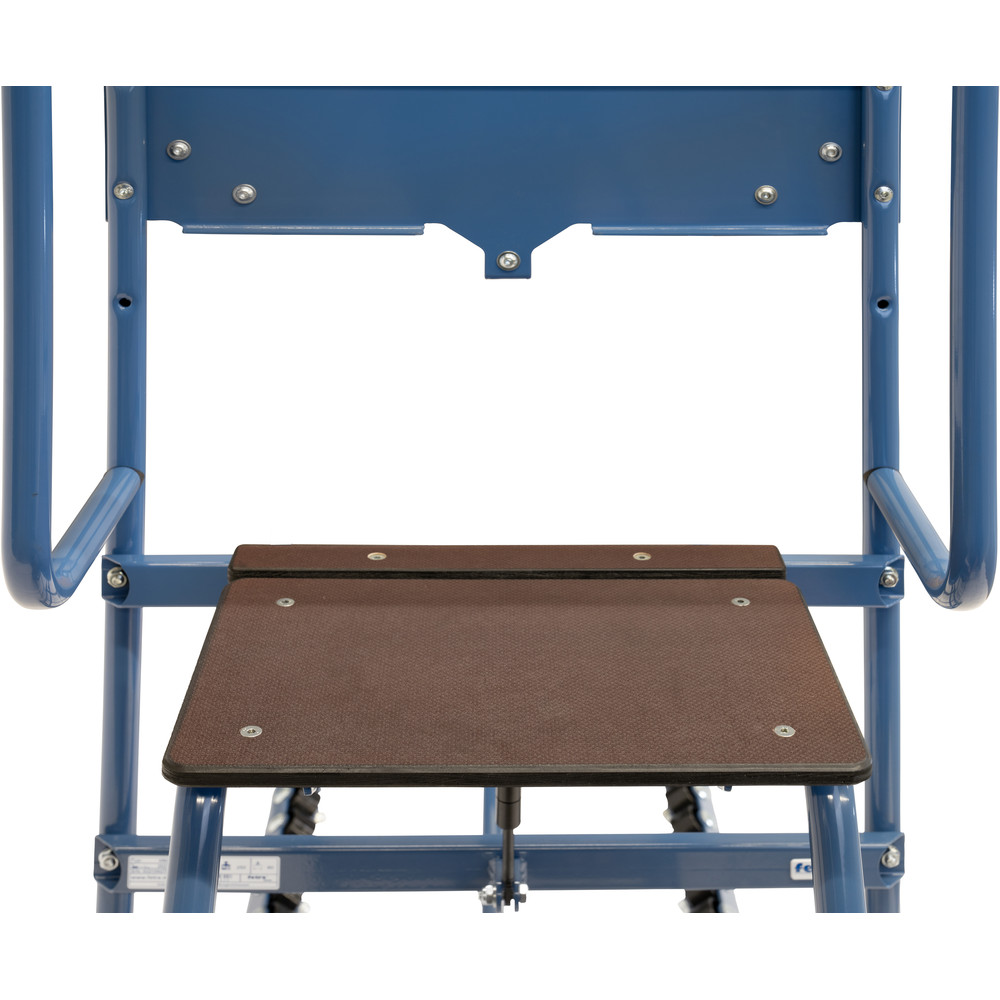

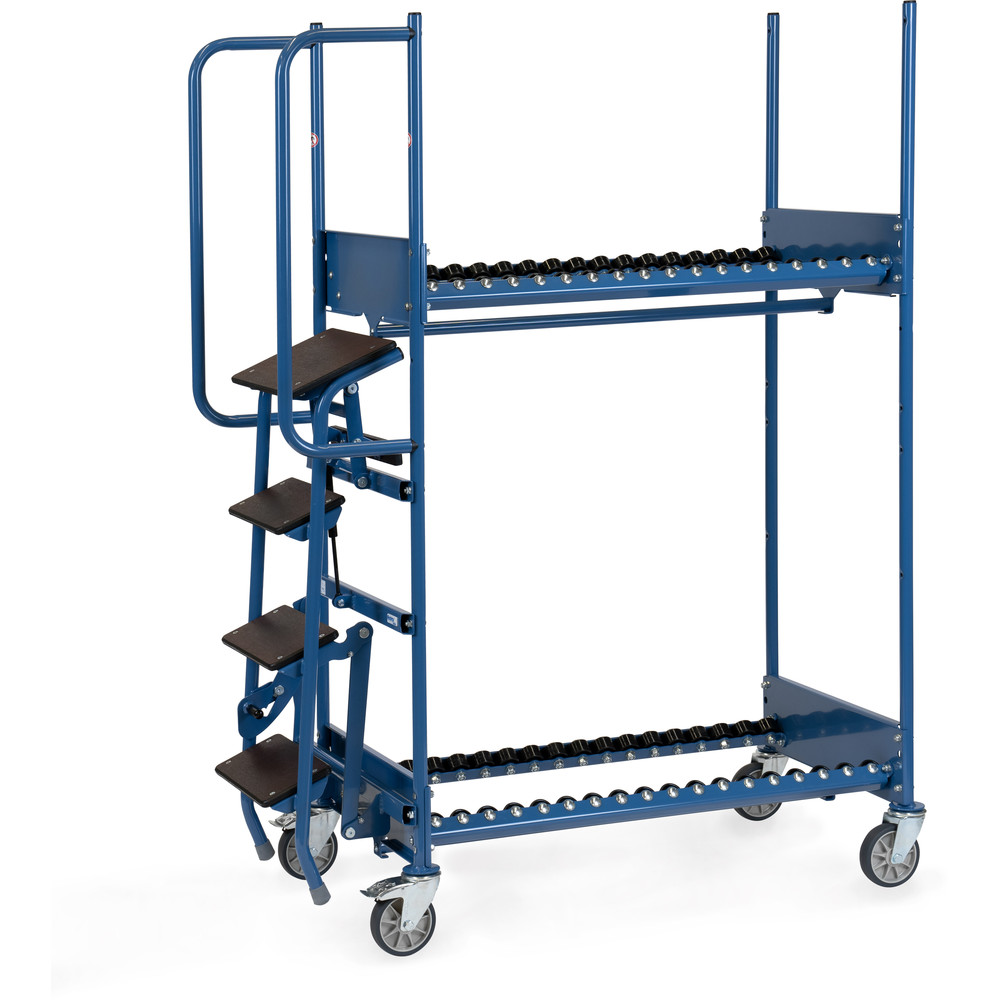

For comfortable order picking of wheels and tyres. Tyre carrier with robust roller conveyors with fall through protection for easy moving of loaded wheels and tyres with 550 - 850 mm Ø. Upper shelf screwable in height of 1.253 or 1.153 mm, capacity 80 kg. At face ends 4 wooden steps lifting automatically when released and locking the trolley via rubber feet when under load. Safety stand on upper step by extended platform. Safety handle to hold onto or lean against. The steps can be completly tilted assisted by a gas spring. 4 swivel castors, TPE tyres, hubs with groove ball bearing. Swivel castors with wheel lock.
Technical Data
| Total Load Capacity (kg) | 250 |
| Load capacity per shelf (kg) | 80 |
| Wheel Size (mm) | 125 |
| Tyres | TPE |
| Usable Surface Length (mm) | 1000 |
| Usable Surface Width (mm) | 588 |
| Total Length (mm) | 1343 |
| Total Width (mm) | 625 |
| Total Height (mm) | 1749 |
| Note | for tyre diameter 550 - 850 mm |
Place of use
- Car repair
Purpose of use
- Transport of tyres
- Storage of tyres
