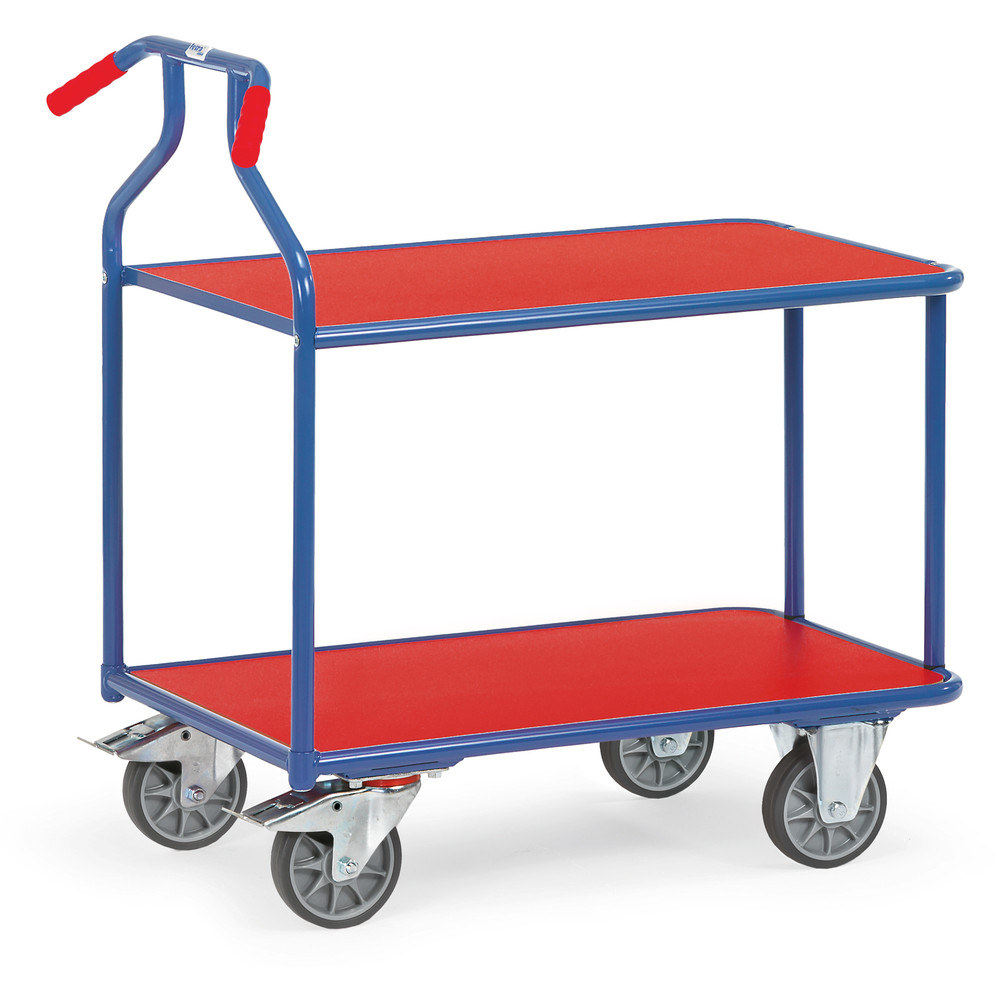

Optiliner
400 kg capacity, egonomic designed push handle
item number 3601
Would you like to adapt the article to your needs? Take a look at the additional options:
Tyres
![Wheels with pneumatic tyres (max. 400 kg capacity)]( "Wheels with pneumatic tyres (max. 400 kg capacity)")
![Wheels with blue-grey elastic tyres]( "Wheels with blue-grey elastic tyres")
![Changing into 4 swivel castors]( "Changing into 4 swivel castors")
![Wheels with polyamide]( "Wheels with polyamide")
![Wheels with polyurethane tyres]( "Wheels with polyurethane tyres")
![Wheels with electrically conductive TPE-ESD-tyres]( "Wheels with electrically conductive TPE-ESD-tyres")
Wheels with pneumatic tyres (max. 400 kg capacity) +€159.00
item number: 1099
Wheels with blue-grey elastic tyres +€109.00
item number: 12865
Changing into 4 swivel castors +€18.00
item number: 1288
Wheels with polyamide +€50.00
item number: 1296
Wheels with polyurethane tyres +€199.00
item number: 2180
Wheels with electrically conductive TPE-ESD-tyres +€105.00
item number: 2183
TOTALSTOP-central brake system +€55.00
item number: 2210
FIXSTOP - central directional locking +€141.00
item number: 2220
2 swivel castors with directional locking device +€99.00
item number: 23989
€341.00
Content:
1 Stück
Delivery time: 1 - 2 Weeks
item number
3601
Share this article:
Product information
Tubular steel cart, powder coated. Derived timber material boards with coloured plastic surface. With 2 platforms. 2 swivel and 2 fixed-wheel castors, TPE tyres, hubs with groove ball bearing. Swivel castors with wheel locks.
Technical Data
| Total Load Capacity (kg) | 400 |
| Load capacity per shelf (kg) | 200 |
| Wheel Size (mm) | 160 |
| Tyres | TPE |
| Usable Surface Length (mm) | 900 |
| Usable Surface Width (mm) | 600 |
| Shelf Heights (mm) | 230, 735 |
| Total Length (mm) | 1115 |
| Total Width (mm) | 600 |
| Total Height (mm) | 1030 |
Place of use
- Industry
- Nursery
- Outdoor area
Purpose of use
- General transport
Accessories
