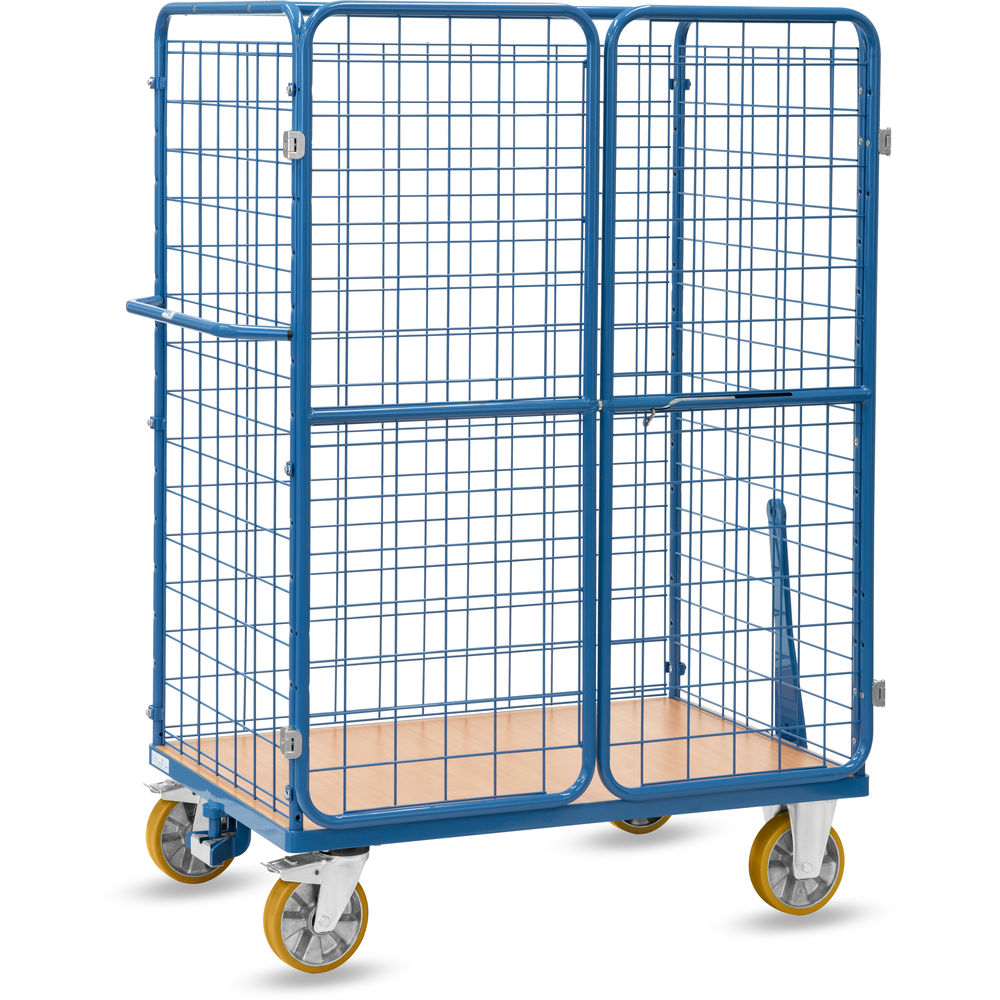

Parcel cart with as tugger train
with double wing doors and walls made of wire lattice
item number 8583-3-RZ
Would you like to adapt the article to your needs? Take a look at the additional options:
Customise platform
![Waterproof platform]( "Waterproof platform")
![Platform with scoring rubber]( "Platform with scoring rubber")
![Rigid PVC platform]( "Rigid PVC platform")
Waterproof platform +€49.00
item number: 1403
Platform with scoring rubber +€104.00
item number: 1413
Rigid PVC platform +€184.00
item number: 1433
save
Protective edge +€45.00
item number: 1289
€1,337.00
Content:
1 Stück
Delivery time: 2 - 3 Weeks
item number
8583-3-RZ
Share this article:
Product information
Made of tubular and sectional steel, welded and powder coated blue RAL 5007, bolted construction. Ends and 1 side made of wire lattice 100 x 100 x 5 mm. With double wing doors at the open side panel. Tubular steel frame with wire lattice 100 x 100 x 5 mm. Integrated bolt lock, doors lockable with padlock (not included in delivery), wing doors turnable till side panels. Platform made of special wood material boards, surface beech grain. 2 swivel and 2 fixed-wheel castors, with robust steel carriages suitable for tugger trains, wheels with PU tyres on aluminium rims, hubs with precision ball bearings. Swivel castors with wheel locks. Tyres are non-marking (trackless). Low-noise running on even flooring. This coupling system guarantees the best possible directional stability. Tractors must have front wheel steering and tugger train drawbar! Max. 5 trolleys per train. Max. train speed 6 km/h. Max. train weight 3000 kg. Self-securing flat steel drawbar on the fixed-wheel side. Drawbar eye Ø 26.5 mm. Comfortable foot operation. Automatically rebounds into vertical resting position by means of gas spring. On the swivel wheel side there is a strong coupling pin Ø 25 mm with leading jaws and automatic safety lock.
Technical Data
| Total Load Capacity (kg) | 600 |
| Wheel Size (mm) | 200 |
| Tyres | Polyurethane |
| Loading Surface Height (mm) | 279 |
| Usable Surface Length (mm) | 1200 |
| Usable Surface Width (mm) | 800 |
| Total Length (mm) | 1470 |
| Total Width (mm) | 830 |
| Total Height (mm) | 1810 |
| Version | as tugger train |
Place of use
- Industry
- Stock
- Delivery
- Parcel service
Purpose of use
- Transport as tugger train with several trolleys
- Transport and storage of parcels
- Transport and storage of cardboard boxes
