Shelved trolley as tugger train
with wire lattice and 4 shelves
item number 8413-RZ
Would you like to adapt the article to your needs? Take a look at the additional options:
Protective edge +€45.00
item number: 1289
€1,295.00
Content:
1 Stück
Delivery time: 2 - 3 Weeks
item number
8413-RZ
Share this article:
Product information

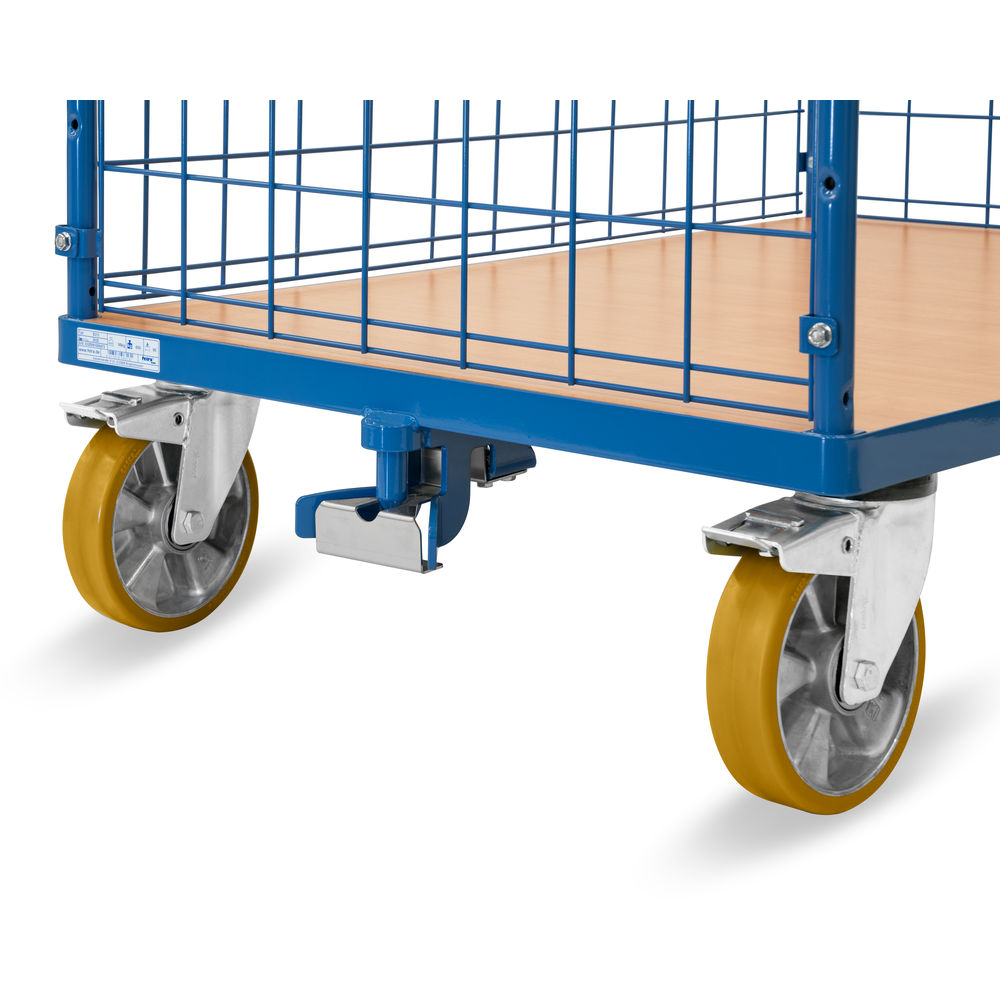

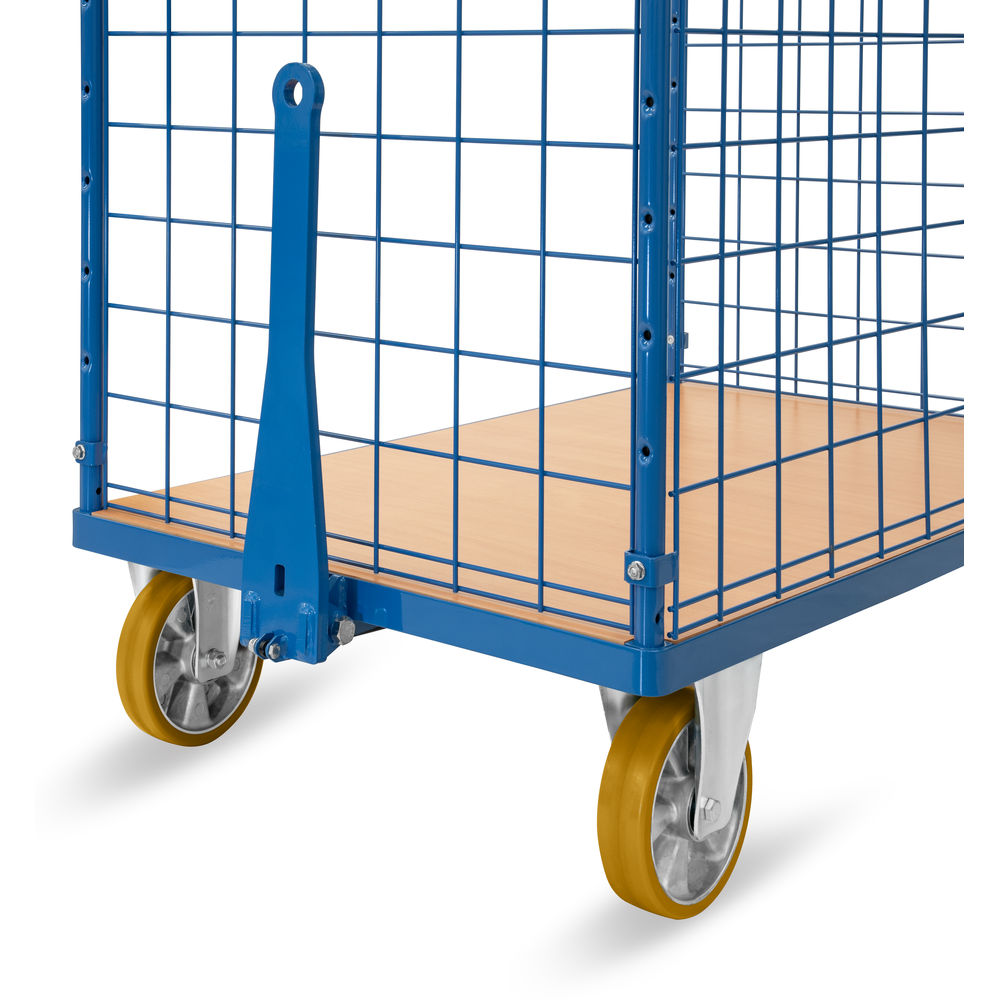

Modular system: Made of tubular and sectional steel, welded and powder coated blue RAL 5007, bolted construction. End panels closed, made of wire lattice 100 x 100 x 5 mm. 1 fix and 3 variable shelves made of special wood material boards, surface beech grain. Variable use of shelves, in a grid of 100 mm. Capacity of shelf 90 kg. 2 swivel and 2 fixed-wheel castors, with robust steel carriages suitable for tugger trains, wheels with PU tyres on aluminium rims, hubs with precision ball bearings. Swivel castors with wheel locks. Tyres are non-marking (trackless). Low-noise running on even flooring. This coupling system guarantees the best possible directional stability. Tractors must have front wheel steering and tugger train drawbar! Max. 5 trolleys per train. Max. train speed 6 km/h. Max. train weight 3000 kg. Self-securing flat steel drawbar on the fixed-wheel side. Drawbar eye Ø 26.5 mm. Comfortable foot operation. Automatically rebounds into vertical resting position by means of gas spring. On the swivel wheel side there is a strong coupling pin Ø 25 mm with leading jaws and automatic safety lock.
Technical Data
| Total Load Capacity (kg) | 600 |
| Load capacity per shelf (kg) | 90 |
| Wheel Size (mm) | 200 |
| Tyres | Polyurethane |
| Usable Surface Length (mm) | 1200 |
| Usable Surface Width (mm) | 800 |
| Shelf Heights (mm) | 279, 679, 1079, 1479 |
| Total Length (mm) | 1470 |
| Total Width (mm) | 809 |
| Total Height (mm) | 1810 |
| Version | as tugger train |
Place of use
- Industry
- Stock
- Outdoor use
Purpose of use
- Transport as tugger train with several trolleys
- General transport
- Transport of crates, boxes
