fetra® Parcel cart 8583-1-RZ

Would you like to adapt the article to your needs? Take a look at the additional options:

Customise platform

Waterproof platform +€49.00 item number: 1403

select

selected

Platform with scoring rubber +€104.00 item number: 1413

select

selected

Rigid PVC platform +€184.00 item number: 1433

select

selected

Protective edge +€45.00 item number: 1289

select

selected

€1,130.00

Content: 1 Stück

Prices plus VAT plus shipping costs

Delivery time: 2 - 3 Weeks

item number 8583-1-RZ

Share this article:

Product information

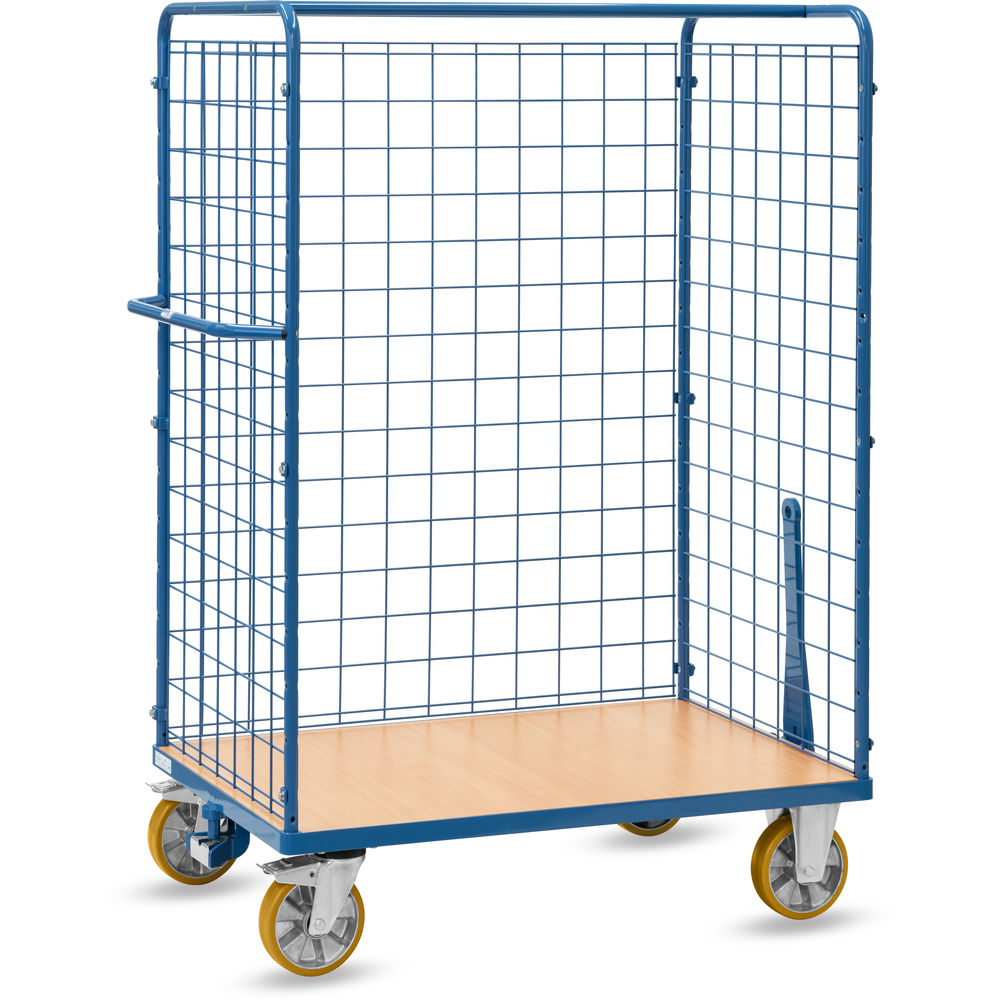

Made of tubular and sectional steel, welded and powder coated blue RAL 5007, bolted construction. Ends and 1 side made of wire lattice 100 x 100 x 5 mm. Platform made of special wood material boards, surface beech grain. 2 swivel and 2 fixed-wheel castors, with robust steel carriages suitable for tugger trains, wheels with PU tyres on aluminium rims, hubs with precision ball bearings. Swivel castors with wheel locks. Tyres are non-marking (trackless). Low-noise running on even flooring. This coupling system guarantees the best possible directional stability. Tractors must have front wheel steering and tugger train drawbar! Max. 5 trolleys per train. Max. train speed 6 km/h. Max. train weight 3000 kg. Self-securing flat steel drawbar on the fixed-wheel side. Drawbar eye Ø 26.5 mm. Comfortable foot operation. Automatically rebounds into vertical resting position by means of gas spring. On the swivel wheel side there is a strong coupling pin Ø 25 mm with leading jaws and automatic safety lock.

PDF-Downloads:

Technical Data

Total Load Capacity (kg)	600
Wheel Size (mm)	200
Tyres	Polyurethane
Loading Surface Height (mm)	279
Usable Surface Length (mm)	1200
Usable Surface Width (mm)	800
Total Length (mm)	1470
Total Width (mm)	800
Total Height (mm)	1810
Version	as tugger train
