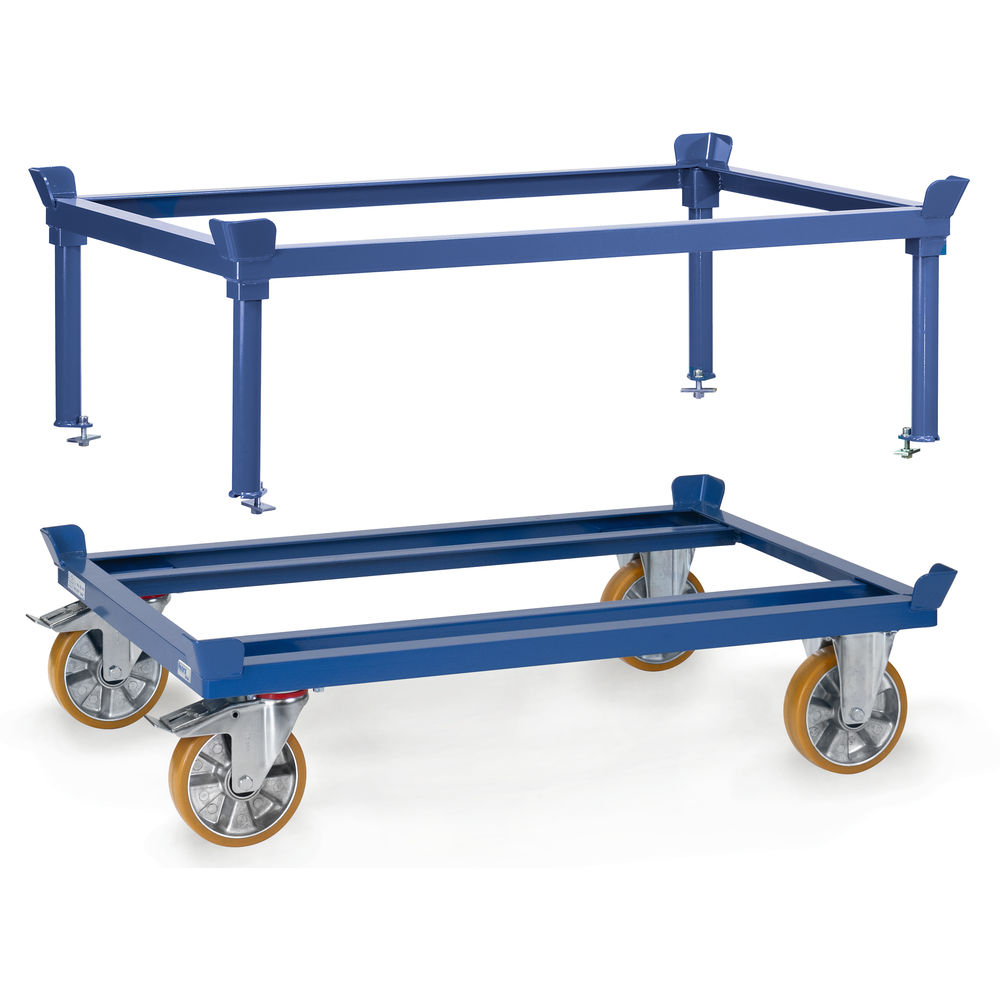

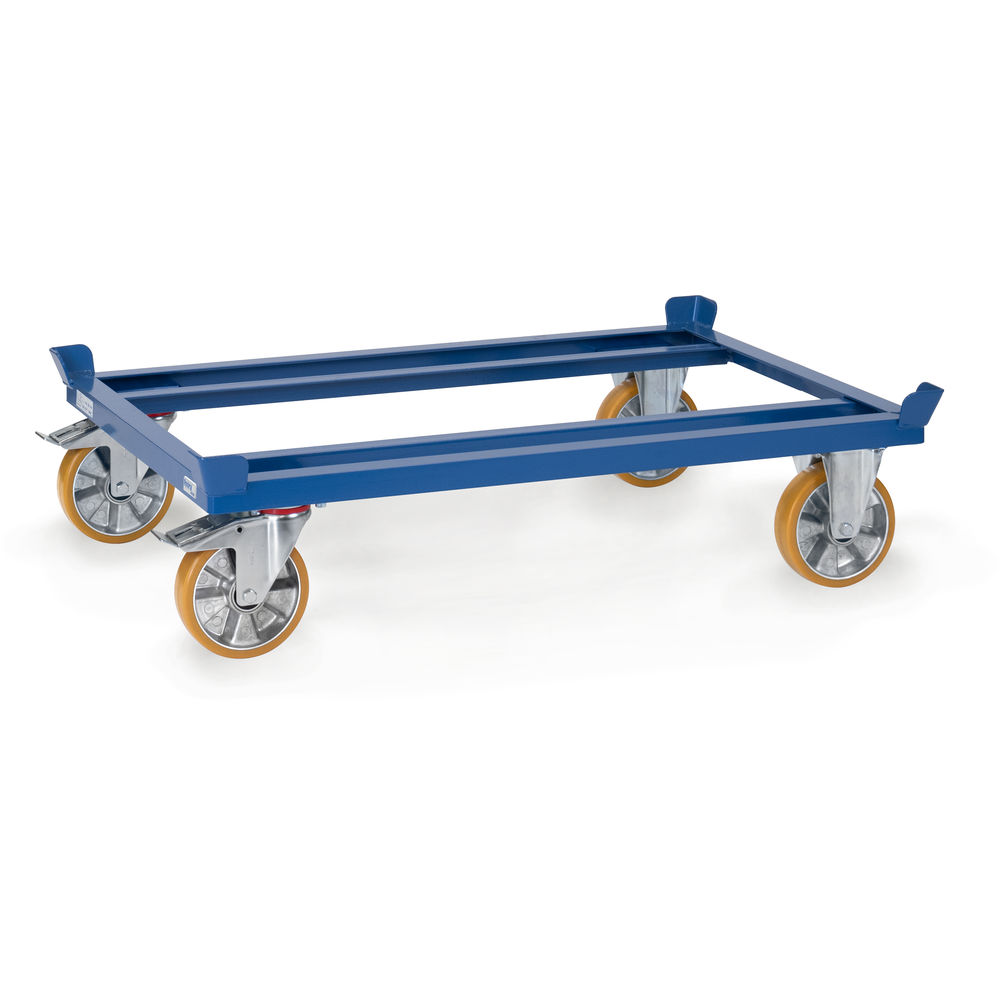

Pallet dolly with stacking frame
1200 kg, for pallets and lattice boxes, polyurethane tyres
item number 2285122921
Would you like to adapt the article to your needs? Take a look at the additional options:
Tyres
![Changing into 4 swivel castors]( "Changing into 4 swivel castors")
Changing into 4 swivel castors +€18.00
item number: 1288
Show all additional options
Hide additional options
€600.00
Content:
1 Stück
Delivery time: 1 - 2 Weeks
item number
2285122921
Share this article:
Product information
For parking flat pallets and pallet cages at an ergonomically comfortable level. Sturdy sectional steel construction, powder coated, blue RAL 5007. 2 swivel and 2 fixed-wheel castors. Swivel castors with wheel lock. TPE tyres 200 x 40 mm, hubs with groove ball bearing. Very low starting, rolling and swivelling resistance. Tyres are non-marking (trackless). Low-noise running on even flooring. With 4 catch corners. Stable support tubes with foot plates, to be inserted into corner sleeves at the stacking frame. Stacking frames can be bolted tight with the pallet dolly via base plates and bolting set (included in delivery).
Technical Data
| Total Load Capacity (kg) | 1200 |
| Wheel Size (mm) | 200 |
| Tyres | Polyurethane |
| Loading Surface Height (mm) | 652 |
| Usable Surface Length (mm) | 1210 |
| Usable Surface Width (mm) | 810 |
| Total Length (mm) | 1255 |
| Total Width (mm) | 855 |
| Total Height (mm) | 699 |
| Version | for euro pallets |
Place of use
- Industry
- Stock
Purpose of use
- Transport of pallets
