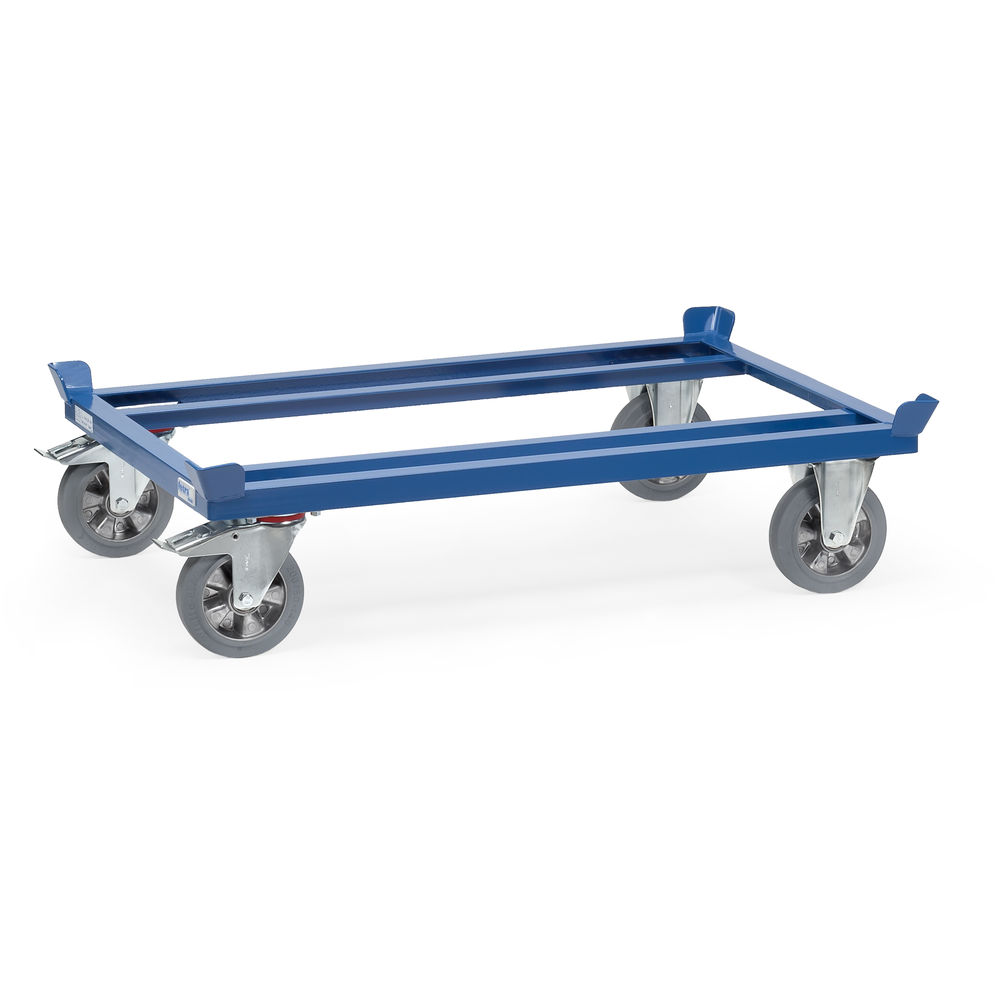

Pallet dolly with stacking frame
1200 kg, for pallets and lattice boxes, elasticated solid rubber tyres
item number 2281122921
Would you like to adapt the article to your needs? Take a look at the additional options:
Tyres
![Changing into 4 swivel castors]( "Changing into 4 swivel castors")
Changing into 4 swivel castors +€18.00
item number: 1288
Show all additional options
Hide additional options
€509.00
Content:
1 Stück
Delivery time: 1 - 2 Weeks
item number
2281122921
Share this article:
Product information

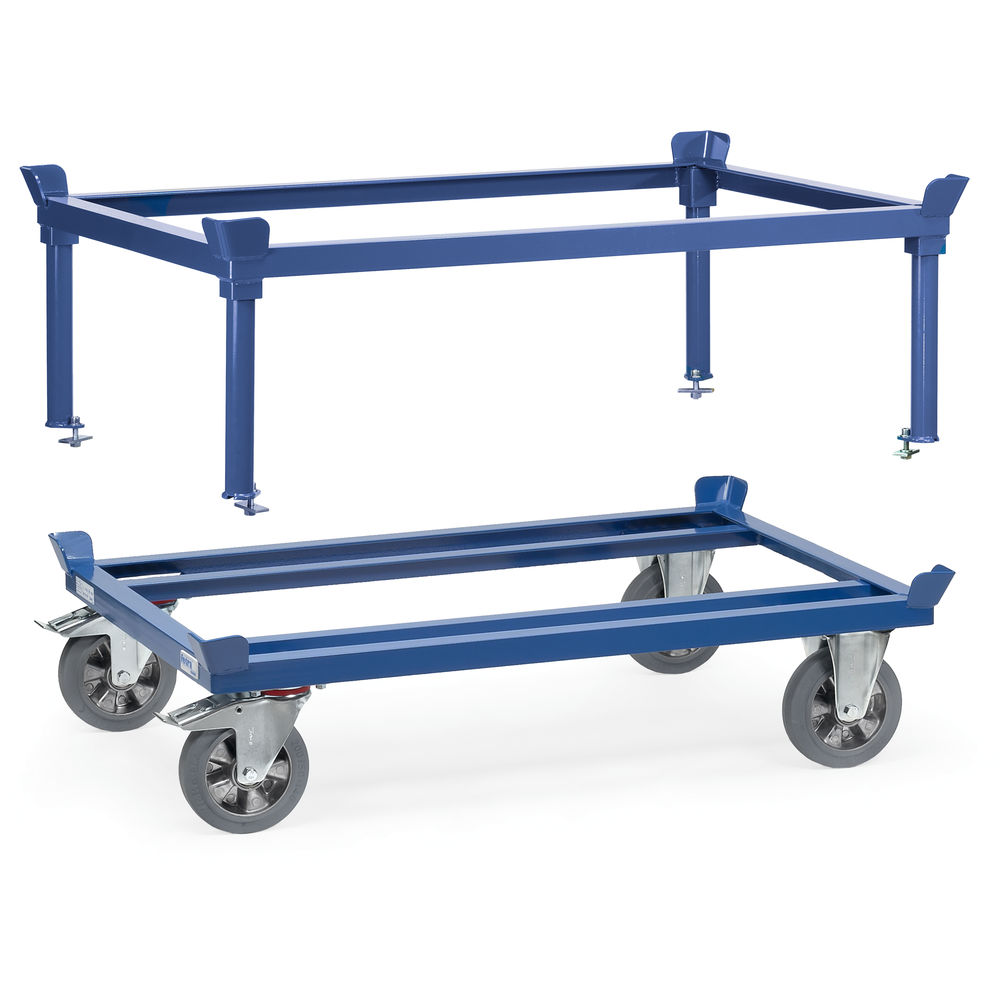

For parking flat pallets and pallet cages at an ergonomically comfortable level. Sturdy sectional steel construction, powder coated, blue RAL 5007. 2 castor wheels and 2 fixed wheels 200 x 50 mm. Castors with wheel lock. Elasticated solid rubber tyres, blue-grey "trackless", hubs with ball bearings. Low rolling resistance, easy movement, no road noise. With 4 catch corners. Stable support tubes with foot plates, to be inserted into corner sleeves at the stacking frame. Stacking frames can be bolted tight with the pallet dolly via base plates and bolting set (included in delivery).
Technical Data
| Total Load Capacity (kg) | 1200 |
| Wheel Size (mm) | 200 |
| Tyres | Elastic solid rubber blue grey |
| Loading Surface Height (mm) | 652 |
| Usable Surface Length (mm) | 1210 |
| Usable Surface Width (mm) | 810 |
| Total Length (mm) | 1255 |
| Total Width (mm) | 855 |
| Total Height (mm) | 699 |
| Version | for euro pallets |
Place of use
- Industry
- Stock
Purpose of use
- Transport of pallets
