Pallet dolly as tugger train
1000 kg, for pallets and lattice boxes, easy loading from the side with forklift
item number 22601
Would you like to adapt the article to your needs? Take a look at the additional options:
Push handle for pallet dollies +€110.00
item number: 22890
€830.00
Content:
1 Stück
Delivery time: 1 - 2 Weeks
item number
22601
Share this article:
Product information

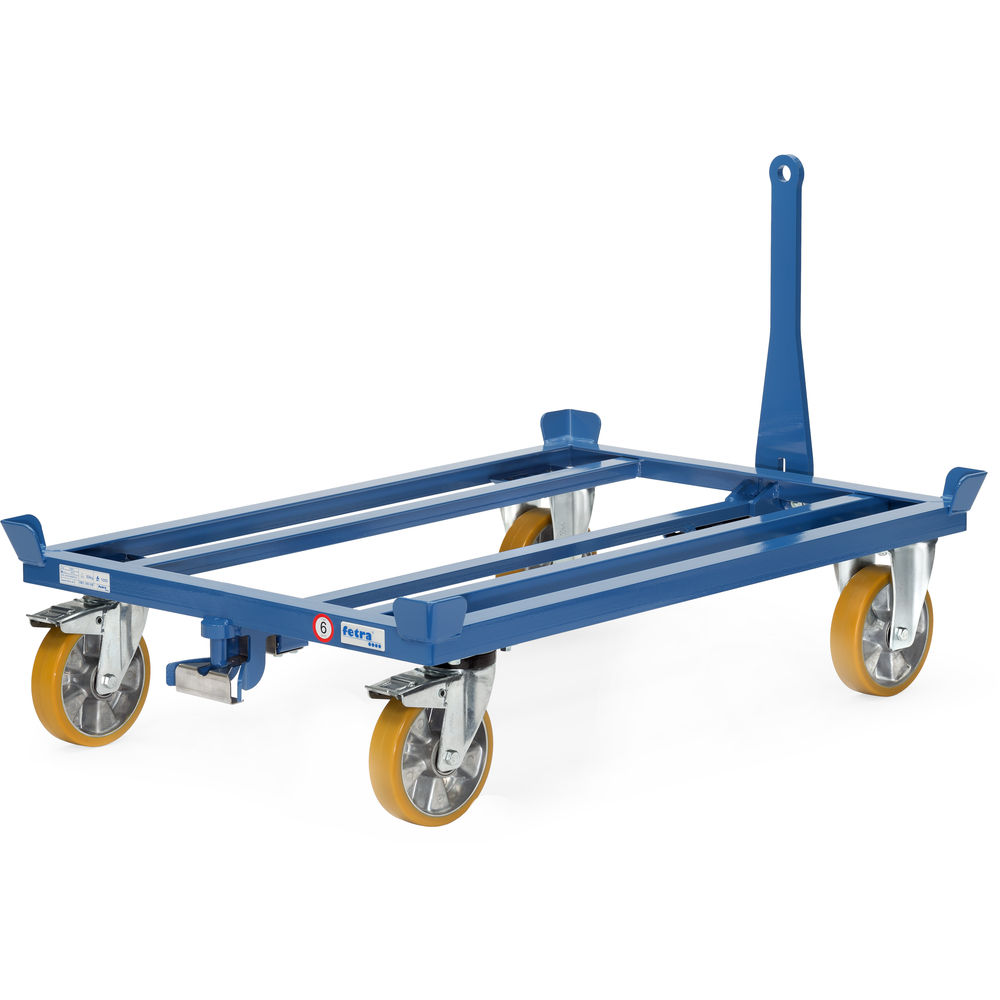

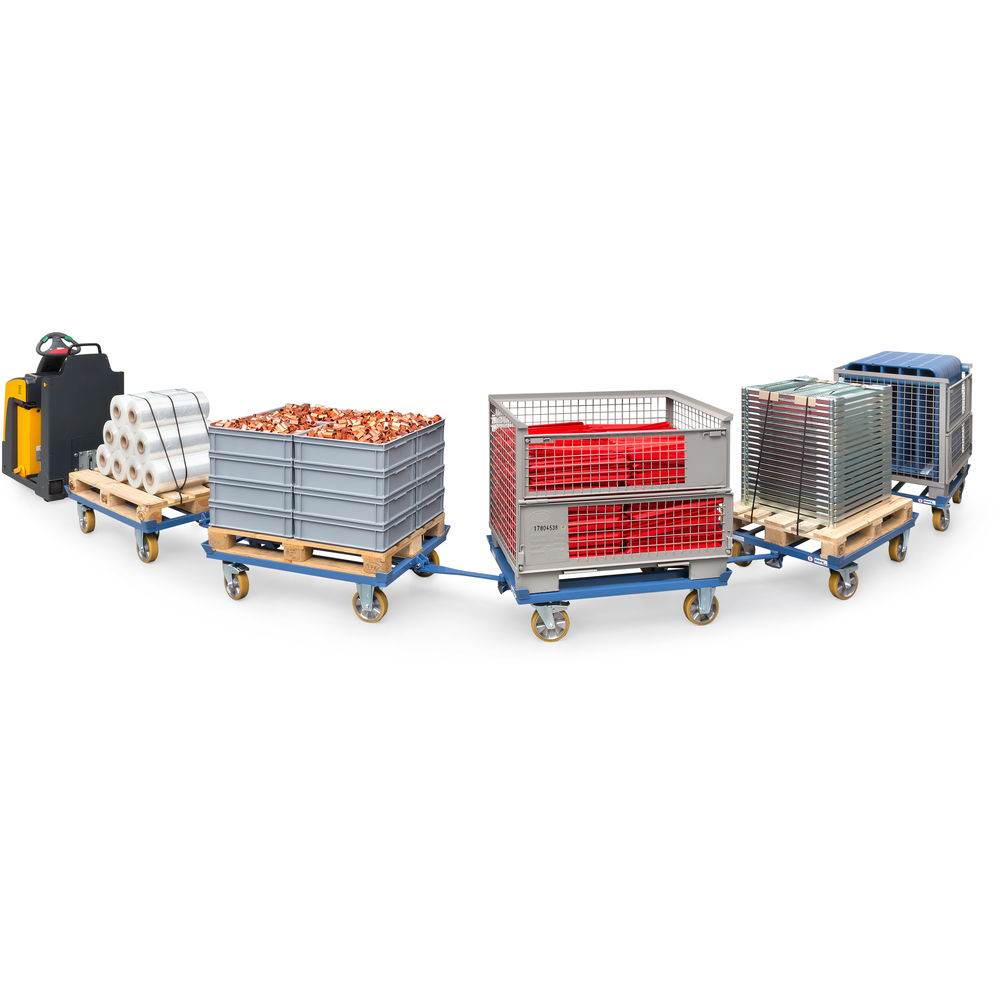

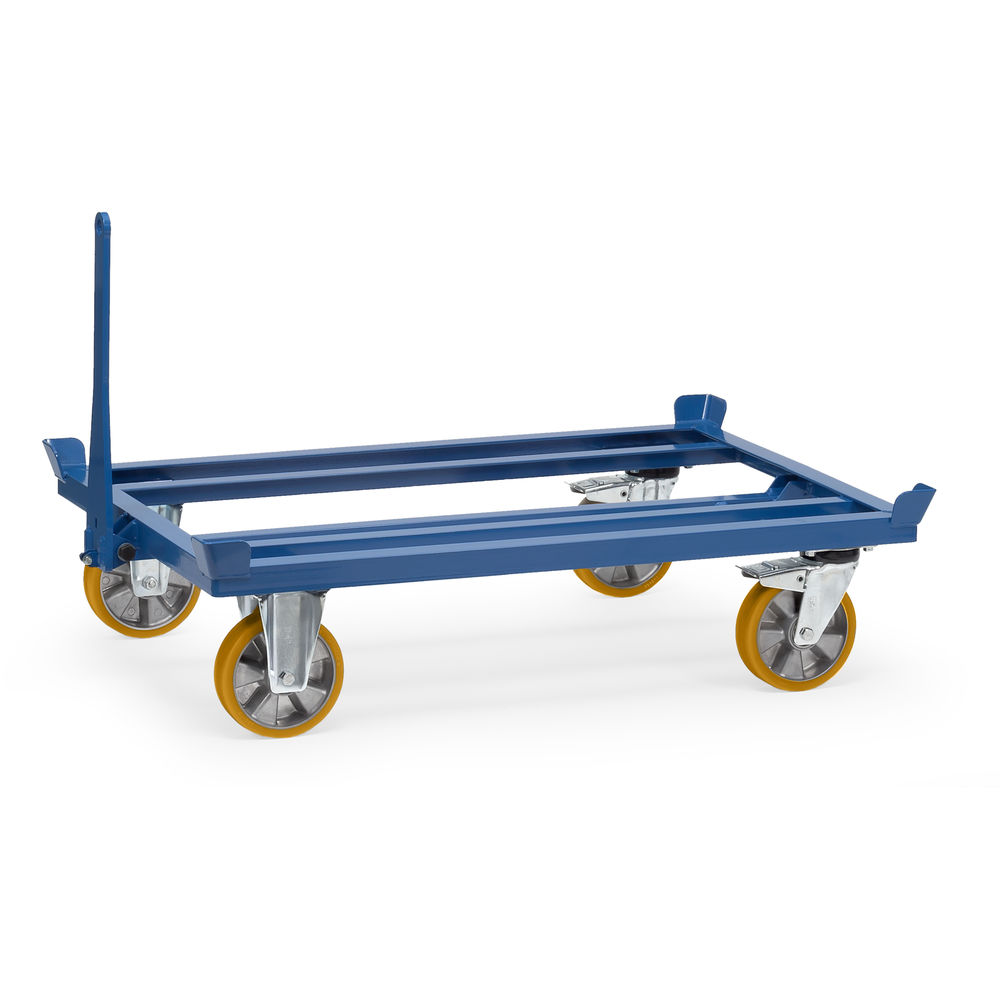

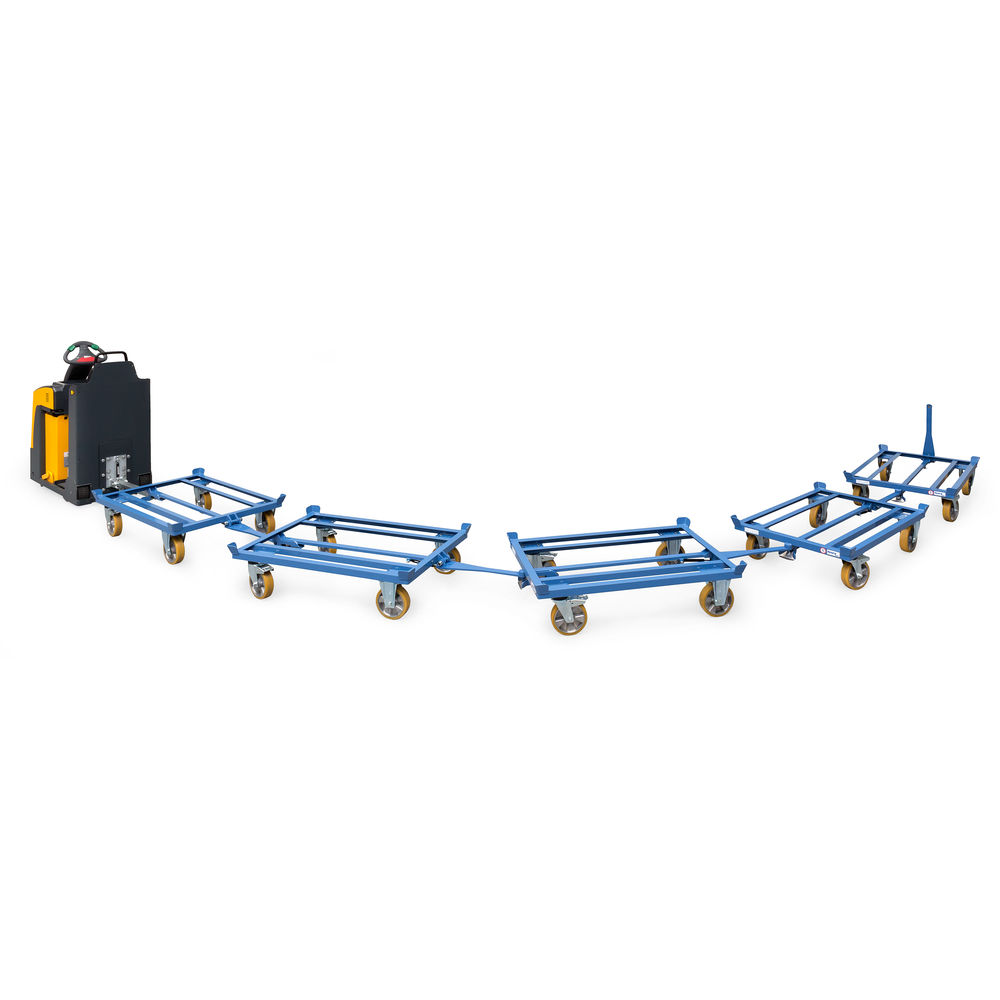

For pallets and lattice boxes in European standard sizes. Easy loading and unloading from the side with forklift. Sturdy sectional steel construction with 4 catch corners for stacking. Powder coated blue RAL 5007. 2 swivel and 2 fixed-wheel castors, with robust steel carriages suitable for tugger trains, wheels with PU tyres on aluminium rims, hubs with precision ball bearings. Swivel castors with wheel locks. Tyres are non-marking (trackless). Low-noise running on even flooring. Capacity 1000 kg. This coupling system guarantees the best possible directional stability. Tractors must have front wheel steering and tugger train drawbar! Max. 5 pallet dollies per train. Max. train speed 6 km/h. Max. train weight 3000 kg. Self-securing flat steel drawbar on the fixed-wheel side. Drawbar eye Ø 26.5 mm. Comfortable foot operation. Automatically rebounds into vertical resting position by means of gas spring. On the swivel wheel side there is a strong coupling pin Ø 25 mm with leading jaws and automatic safety lock. Coupling height 205 mm.
Technical Data
| Total Load Capacity (kg) | 1000 |
| Wheel Size (mm) | 200 |
| Tyres | Polyurethane |
| Loading Surface Height (mm) | 290 |
| Usable Surface Length (mm) | 1210 |
| Usable Surface Width (mm) | 810 |
| Total Length (mm) | 1327 |
| Total Width (mm) | 855 |
| Total Height (mm) | 783 |
| Version | as tugger train |
