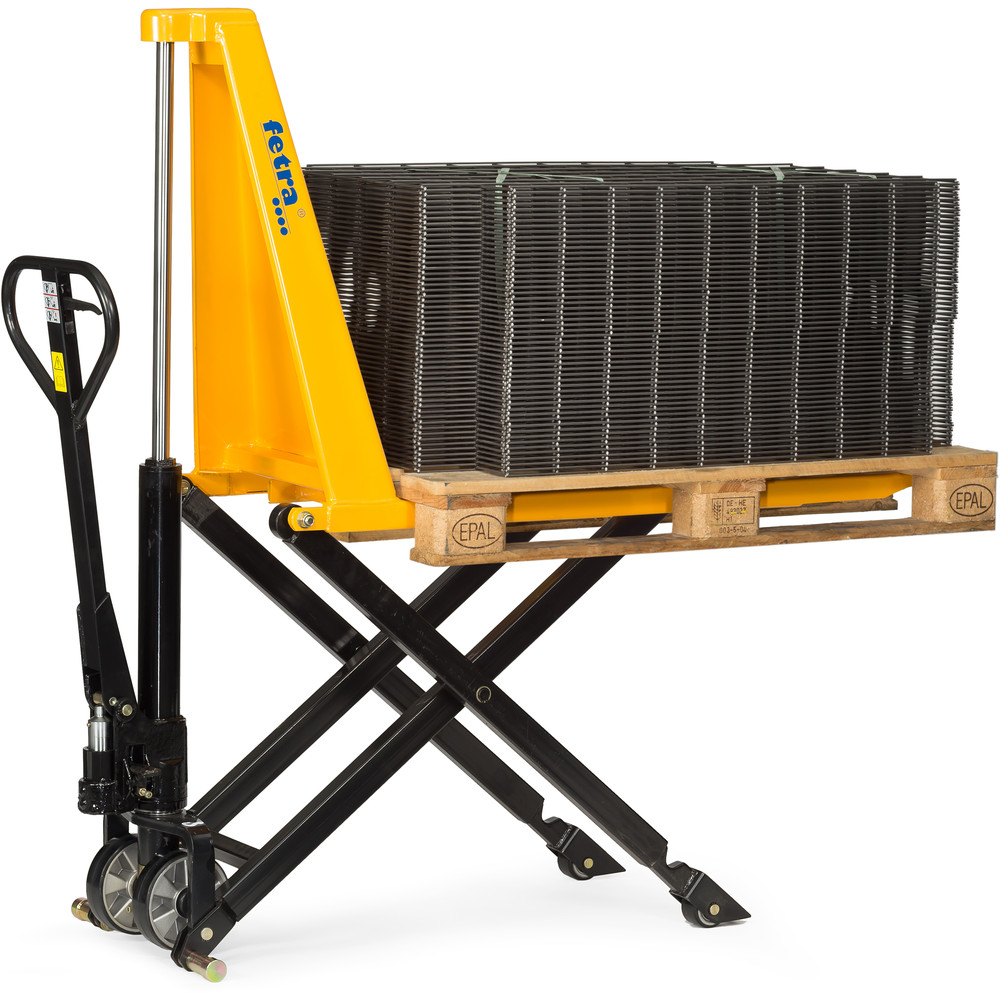

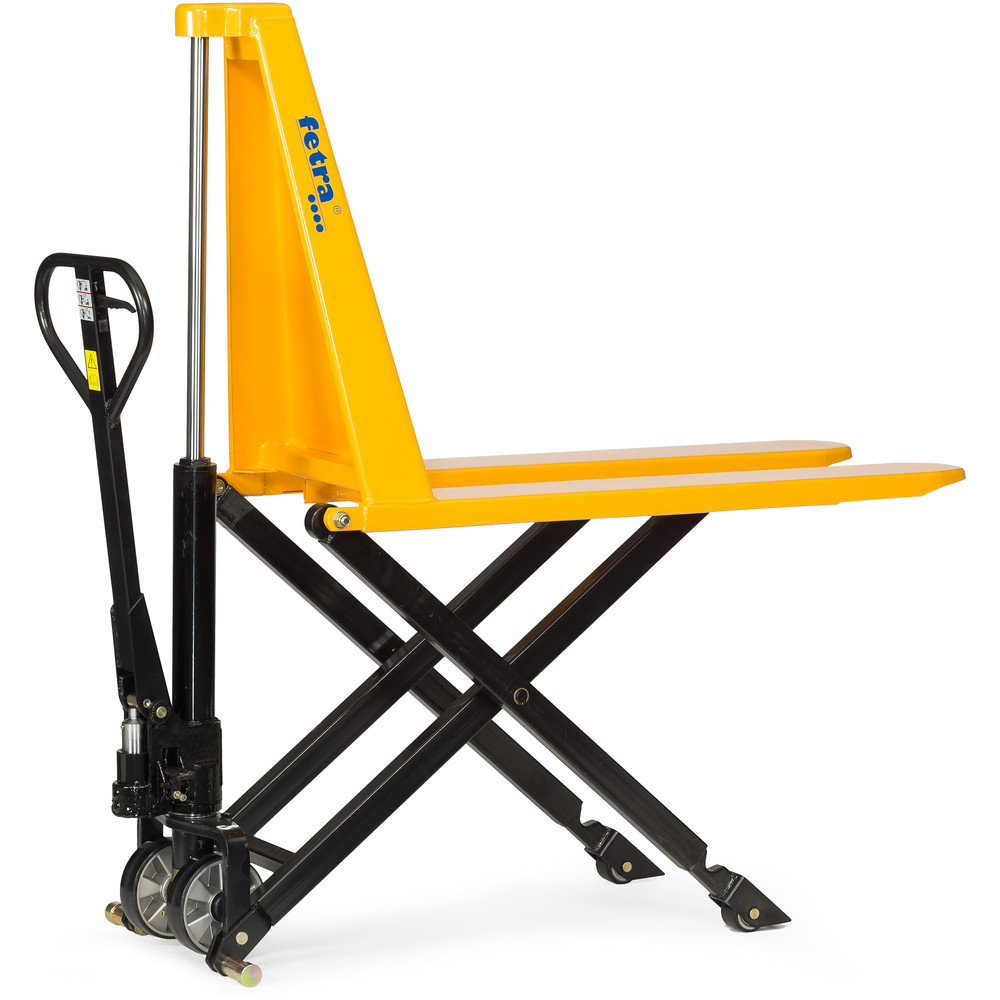

High lift pallet truck
1000 kg load capacity, wheels polyurethane
item number 6815
€1,013.00
Content:
1 Stück
Delivery time: 1 Week
item number
6815
Share this article:
Product information
Frame and forks made in non-buckling shell-type construction, powder coated, signal yellow. Sturdy tubular steel drawbar with counter bearing for shove operation, powder coated, black, rubber covered handle. Hydraulic hand pump, service-free bearing. Operating lever for the following functions: lowering - lifting - quicklift. In quicklift approx. 25 pump strokes up to the maximum lift position, only for weights up to 200 kg. High lift pallet truck is no longer movable from pumping height of approx 290 mm. Steering lock: 2 x 100°. Wheels: Low rolling resistance, smooth running. Good on level and uneven floors and when driving over edges and thresholds. Low driving noises.
Technical Data
| Total Load Capacity (kg) | 1000 |
| Wheel Size (mm) | 180 |
| Tyres | Polyurethane |
| Total Length (mm) | 1540 |
| Total Width (mm) | 540 |
| Fork Length (mm) | 1165 |
| Fork Width (mm) | 160 |
| Load Width (mm) | 540 |
| Fork Roller Material | Polyurethane |
| Fork Roller Diameter x Width (mm) | 80 x 50 |
