Lifting rolls
1000 kg per set
item number 6971
€223.00
Content:
1 Stück
Delivery time: 1 Week
item number
6971
Share this article:
Product information

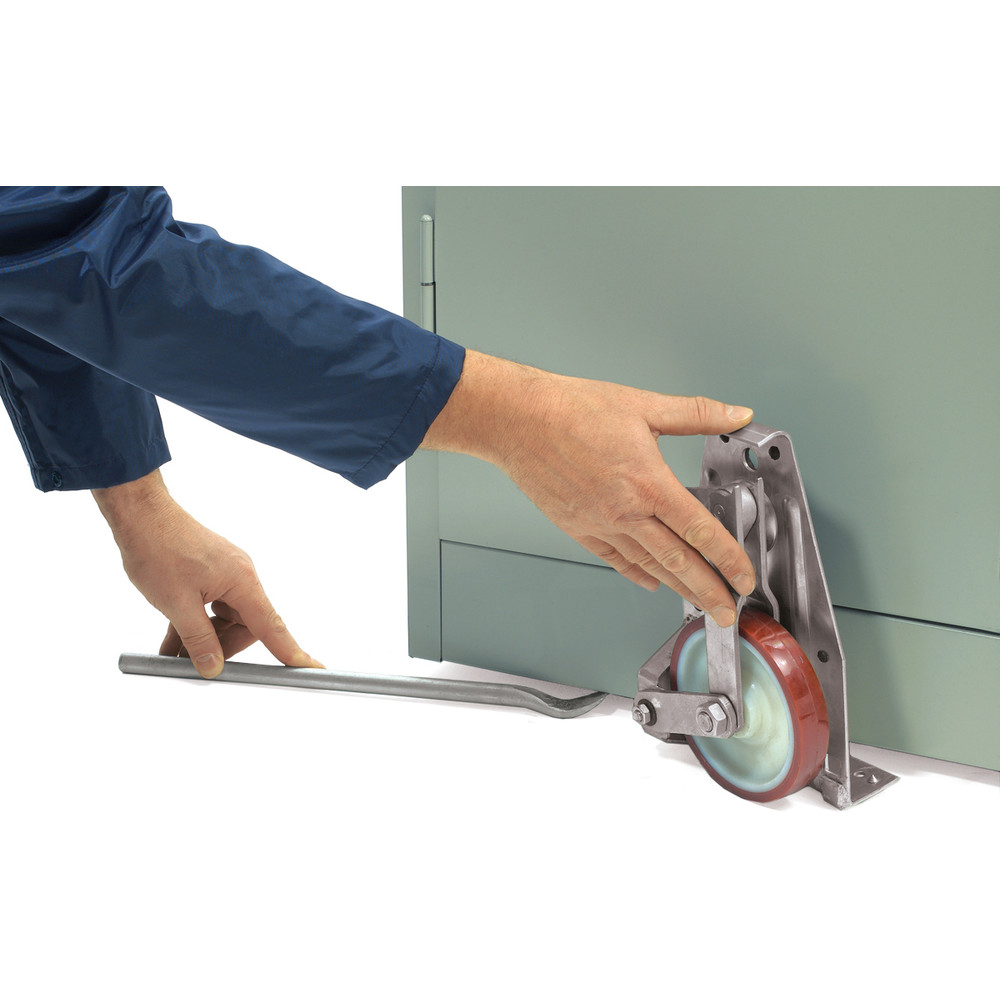

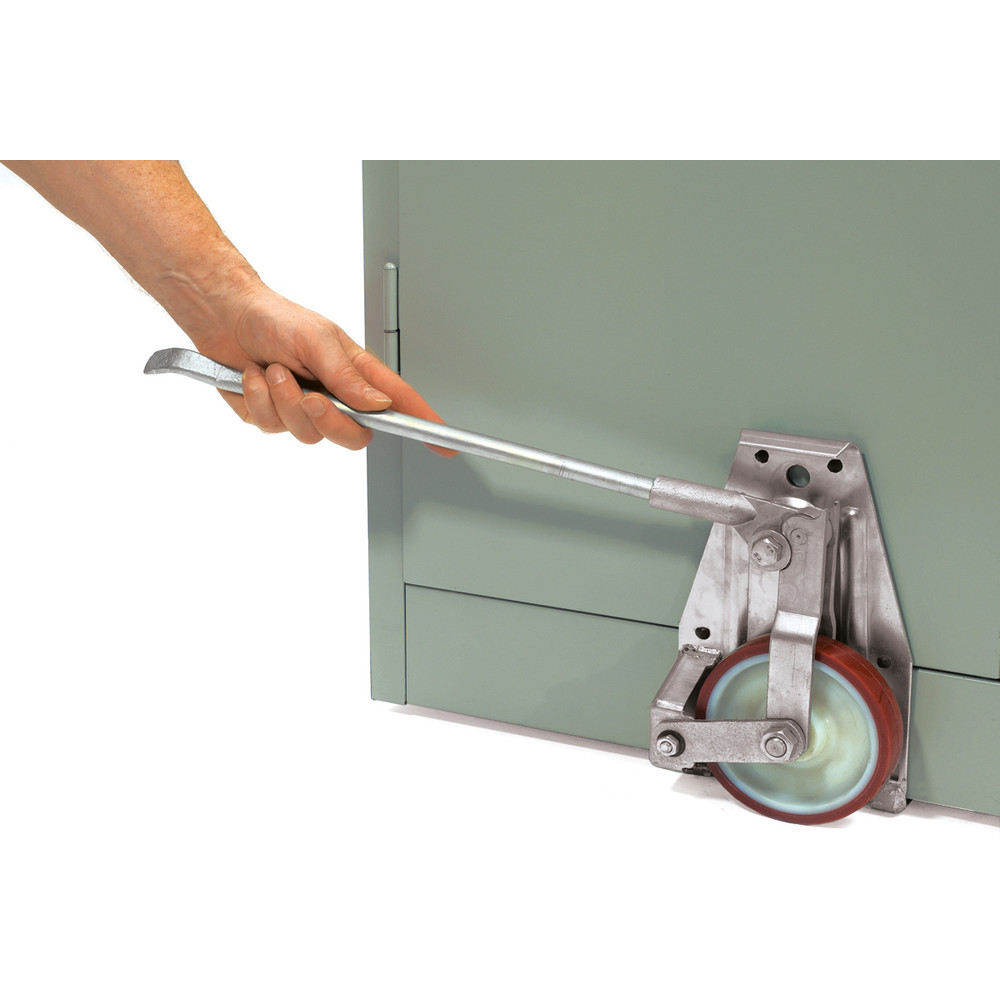

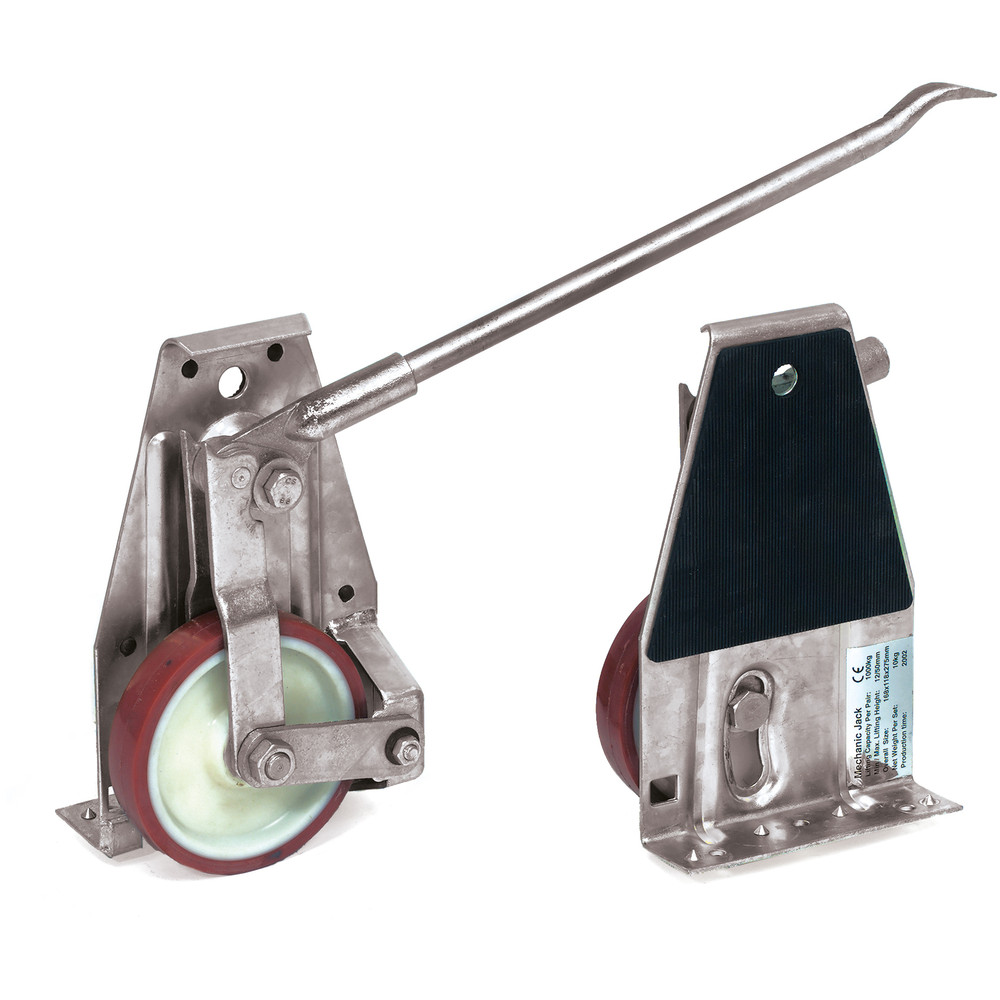

for the transport of heavy cupboards etc., steel plate frame galvanized yellow. Contact area with rubber cover, wheel with Polyurethanee tyres. Claw height: lowered = 12 mm, lifted max. = 50 mm. Scope of delivery: 2 lifting rolls and 1 lever rod. Handling: Lift load with lever rod, place claw of the lifting roll underneath the load and finally lift load completely by shifting the control lever by means of the lever rod. Proceed exactly in the same way on the opposite side with the second lifting roll and the load can be moved.
Technical Data
| Total Load Capacity (kg) | 1000 |
| Wheel Size (mm) | 138 |
| Tyres | Polyurethane |
| Total Length (mm) | 170 |
| Total Width (mm) | 126 |
| Total Height (mm) | 272 |
