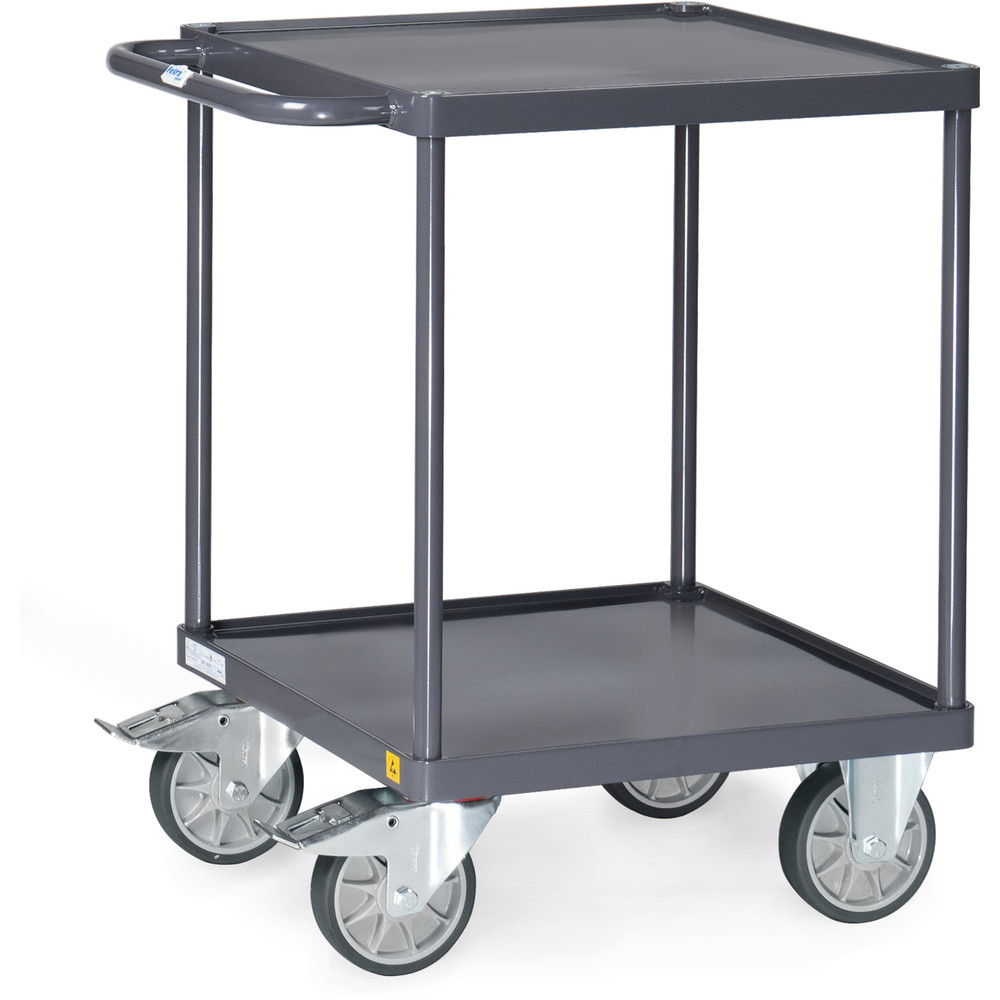

ESD-Table top cart with steel plate trays

up to 600 kg, with 2 shelves, electrically conductive version
Would you like to adapt the article to your needs? Take a look at the additional options:
Tyres
Changing into 4 swivel castors
Changing into 4 swivel castors +€17.00 item number: 1288
TOTALSTOP-central brake system
TOTALSTOP-central brake system +€53.00 item number: 2210
FIXSTOP - central directional locking
FIXSTOP - central directional locking +€138.00 item number: 2220
2 swivel castors with directional locking device
2 swivel castors with directional locking device +€97.00 item number: 23989
€489.00
Content: 1 Stück

Delivery time: 1 - 2 Weeks

1
item number 9496W
Share this article:
Product information

Electrostatic discharge construction (ESD = Electrostatic Discharge). Tubular steel and sectional steel welded, conductive powder coating, slate grey. Screw and plug type construction. 3 electrically conductive platforms, trays made of steel sheet, with rim 10 mm high, welded oil-tight, powder coated. 2 swivel and 2 fixed-wheel castors. Wheels electrically conductive (anti-static) with TPE-ESD tyres (thermoplastic elastomer). Hubs with precision deep groove ball bearing. Maximum comfort: Very low starting, rolling and swivelling resistance. Low noise operation on level floors. Tyres are non-marking. Castors with wheel lock. Capacity upper and middle shelf 200 kg.
Technical Data

Total Load Capacity (kg) 500
Load Capacity (kg) 200
Wheel Size (mm) 160
Tyres TPE-ESD
Usable Surface Length (mm) 600
Usable Surface Width (mm) 600
Shelf Heights (mm) 228, 860
Total Length (mm) 737
Total Width (mm) 609
Total Height (mm) 860
