Made in Germany
10 years garanty

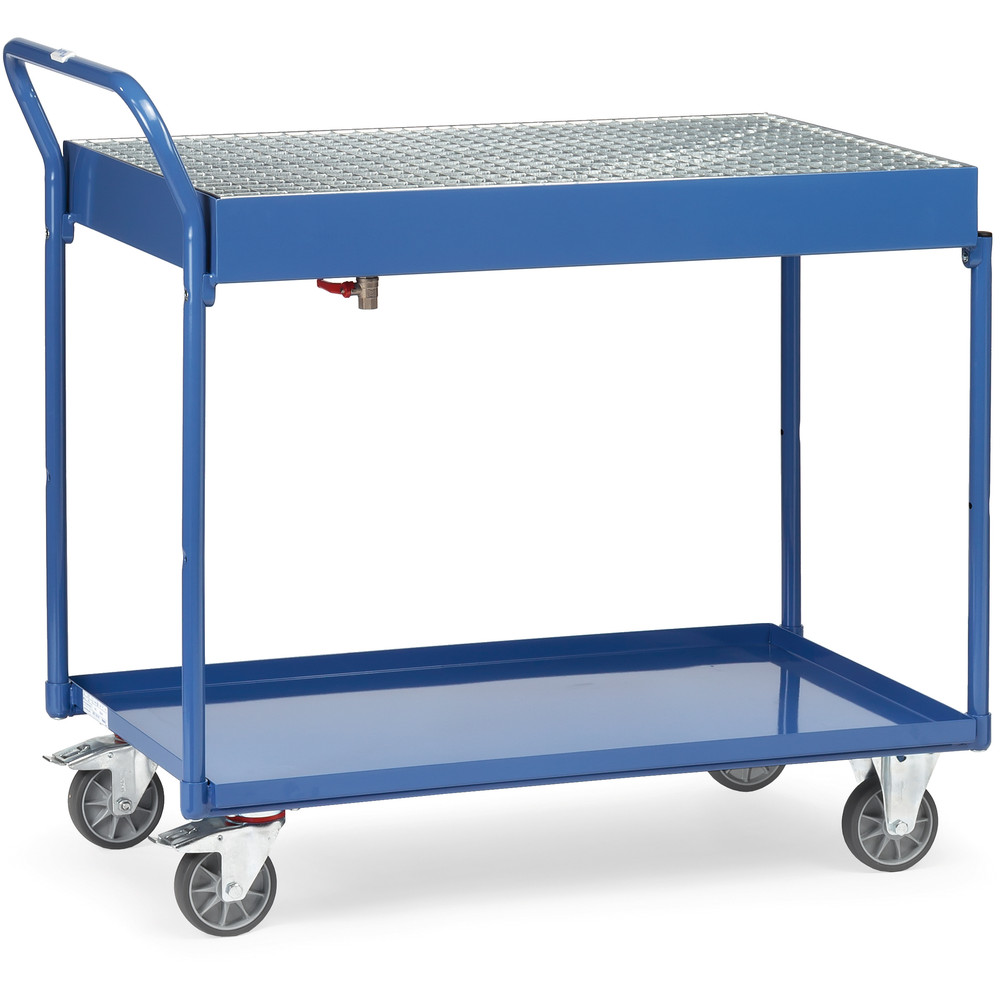

Table top cart with trays
300 kg, platform size 1000 x 600 mm, with steel plate trays and grid
item number 2722
Additional options
Would you like to adapt the article to your needs? Take a look at the additional options:
Tyres
More Options
Product information
Modular system: Steel construction, welded. Tubular steel hoop and steel plate trays screwed. Trays oil-tight, rim 100 mm high, powder coated blue RAL 5007. Base with conical drain and drain tap 1/2". Grid with mesh width of 31 x 31 mm, loosely inserted, flush at the top. Lower steel plate tray 25 mm high, oil-tight. 2 swivel and 2 fixed-wheel castors, TPE tyres, hubs with groove ball bearing. Swivel castors with wheel locks. Capacity of upper shelf 100 kg.
Technical Data
| Total Load Capacity (kg) | 300 |
| Load capacity per shelf (kg) | 100 |
| Wheel Size (mm) | 125 |
| Tyres | TPE |
| Usable Surface Length (mm) | 1000 |
| Usable Surface Width (mm) | 600 |
| Shelf Heights (mm) | 181, 901 |
| Total Length (mm) | 1136 |
| Total Width (mm) | 611 |
| Total Height (mm) | 1030 |
Place of use
- Industry
- Stock
- Workshop
Purpose of use
- General Transport
